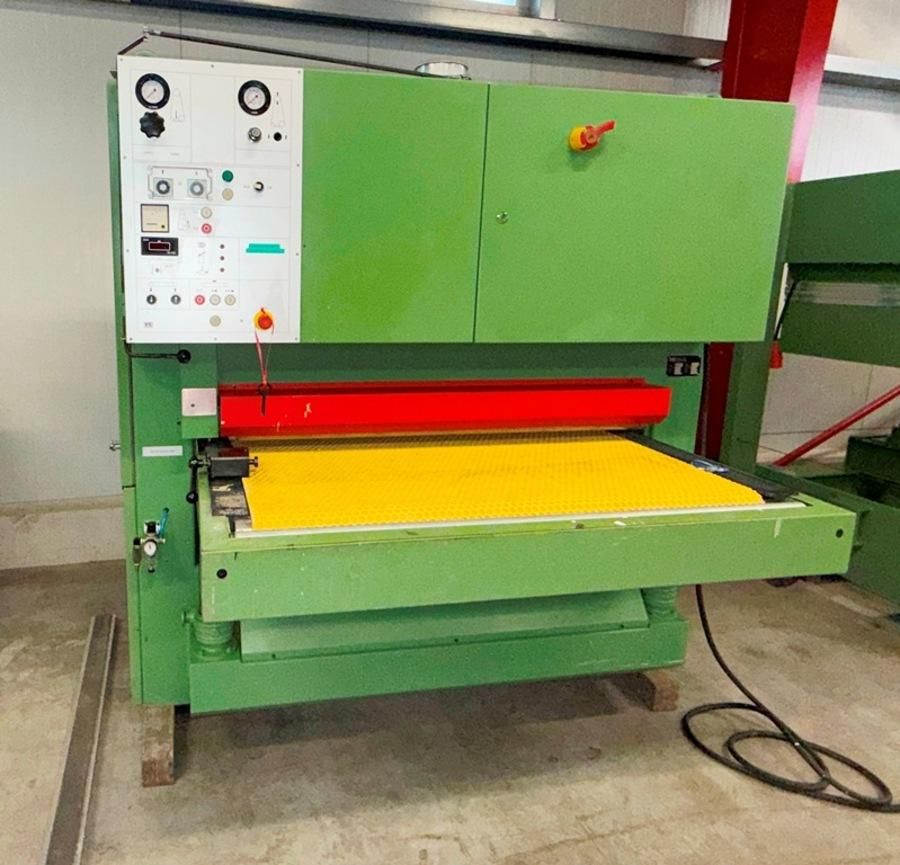

OTT ALPHA 136

Wide belt sander
Maximum working width 1360 mm
Workpiece thickness 3 - 160 mm
Sanding belt dimensions 2150 x 1380 mm
Sanding belt speed 18 m/s
Feed speed 4 / 8 m/min
Sanding unit Motor power 11 kW
Electronic belt oscillation
Hard rubberized contact roller, 150 mm diameter
Combination sanding unit with contact roller and sanding pad
For calibration and fine sanding
Rigid sanding pad for solid sanding and additional pneumatic sanding Pad for veneer sanding
Feed carpet with automatic centring
Brush roller
4-fold grit thickness compensation for contact roller
Semi-automatic workpiece thickness detection
Extraction nozzle diameter 1x 150 mm / 1x 120 mm
Operating pressure 6 bar
Machine ready to plug in with cable and 16 A plug
Technical documentation available
Transport dimensions approx. 2150 x 2100 x 2200 mm LWH
Weight approx. 2600 kg
