Pacific 500R16

Ref : 23700
Condition : Used
Manufacturer : Pacific
Model : 500R16
Year(s) : -
Quantity : 1
Location : Seller or machines location:
AMERICA North (USA-Canada-Mexico)
Last check : 06 Oct. 2020

Reference #23700

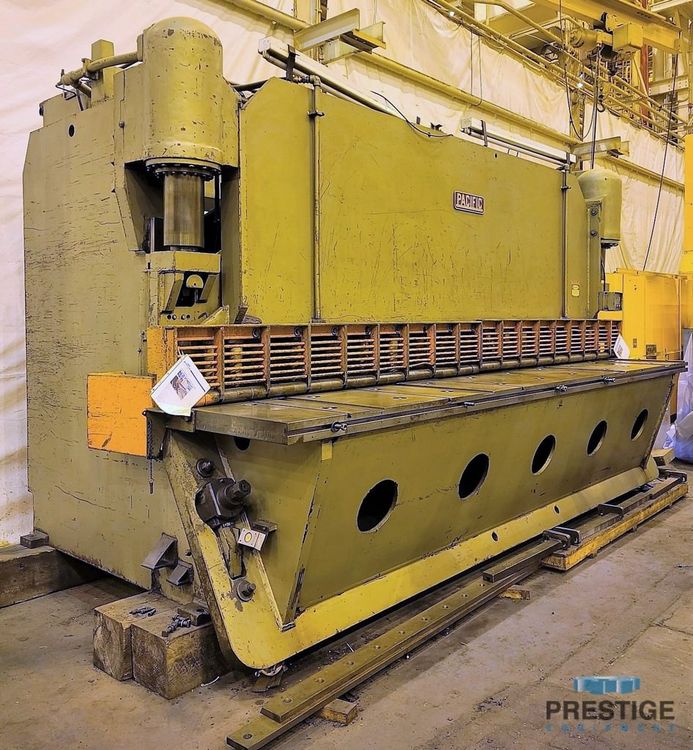

PACIFIC 500R16 1/2" x 16' Hydraulic Squaring Shear
Age: 1977

CAPCITY:
Rated Rake Angle ...................... 3/8"/FT
Capacity @ Rated Rake (MS) ............ 1/2" x 16'
Max Rake Angle ........................ 5/8"/FT
Capacity @ Max Rake (MS) .............. 3/4" x 16'
Distance Between Housings ............. 16'3"
Knife Size ............................ 1 1/8" x 5" x 196"
Back Gauge Range ...................... 48"
Hold Down Tonnage ..................... 51
Strokes/Min. .......................... 10-36 SPM
Main Motor ............................ 40 H.P.
Estimated Shipping Weight ............. 71,000 Lbs.

EQUIPPED WITH:
Power Back Gauge
8' Left Hand Squaring Arm
(4) Front Support Arms

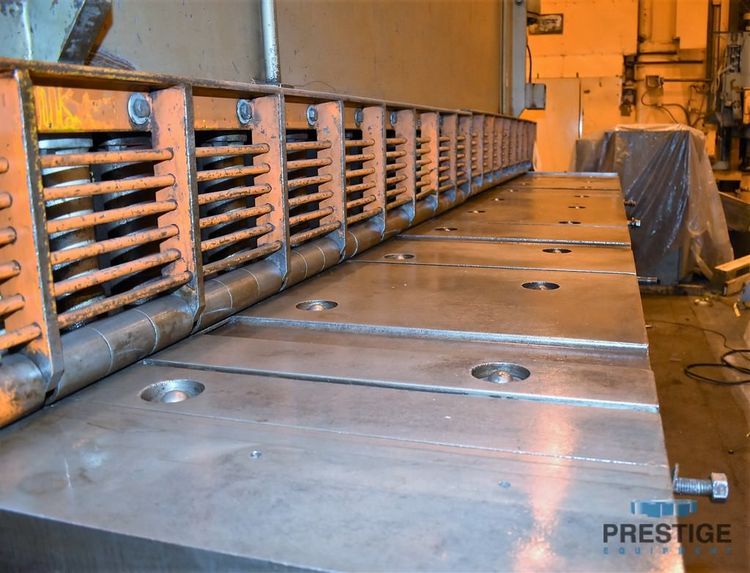

Ball Transfers in Table
Adjustable Stroke

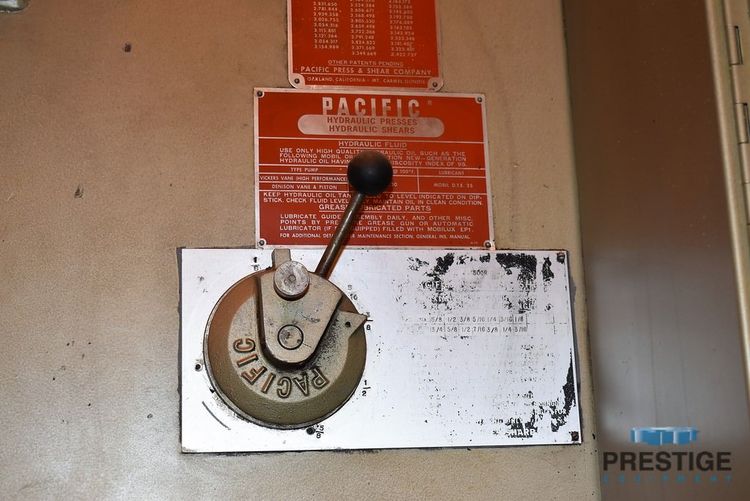

Rake Angle Adjustment
Manual Knife Clearence
Electric Foot Switch

NOTE:
Inspect In Our Philadelphia PA Warehouse
