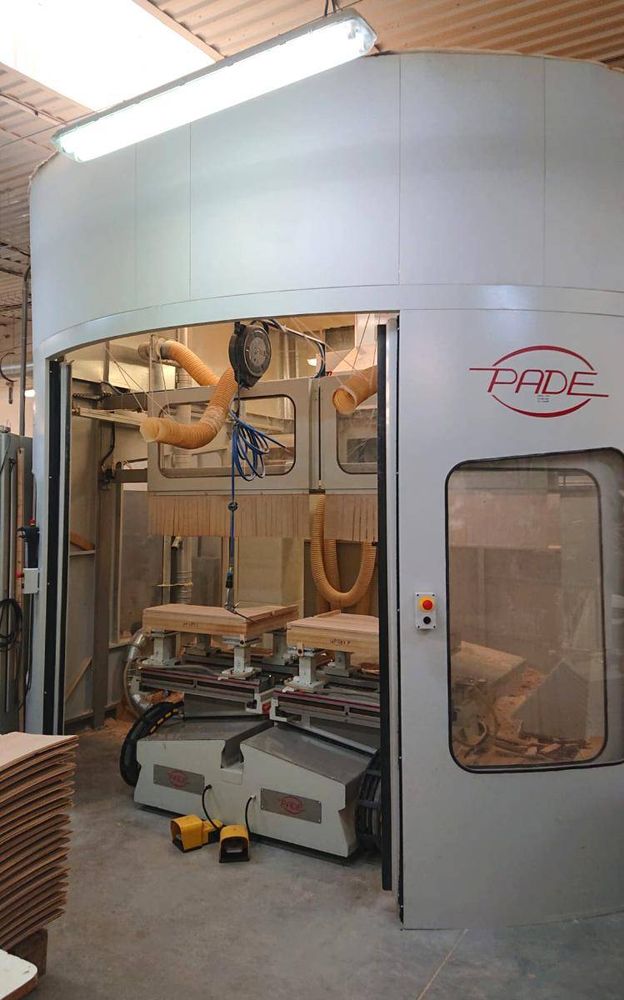

Pade SPIN 5-axis

X-axis mm 2,300
Distance between columns mm 2,600
Axes Y1 and Y2 mm 2,300
Z-axis mm 815
A-axis spindle change continuous
C-axis (head rotation) +/- 360°
X-axis speed m/min 100
Y-axis speed m/min 60
Z-axis speed m/min 60
Number of work tables (flat type) pcs 2
The size of each table pcs 820 (X) x 1030 (Y)
Aluminum tables type TANDEM pcs 4+4 (170x170 mm)
Vacuum pump m3/h 100 x 2 pcs.
Digital controller with integrated PC NUM
PADE easy software included
Remote control included
Number of spindles (head type T5) pcs 3+2
Spindle speed rpm 500…18,000
Spindle power (each)
Motors 1 - 2 - 3 kW 7.5
Motors 4 and 5 kW 4.5
Chuck
Motors 1 - 2 - 3 type ER40
Motors 4 and 5 type ER32
Nutrition V/Hz 400/50
Installed capacity kW 45
Average power consumption kW 30
Compressed air connection bar 7
Cross-section of the power cable mm2 25
Overall dimensions of the center (with protective fencing mm 4.700x4.862x3.600 (H)
Center weight kg 6,500
Dimensions of the electrical cabinet mm 1.200x600x1800 (H)
Weight of the electrical cabinet kg 350
