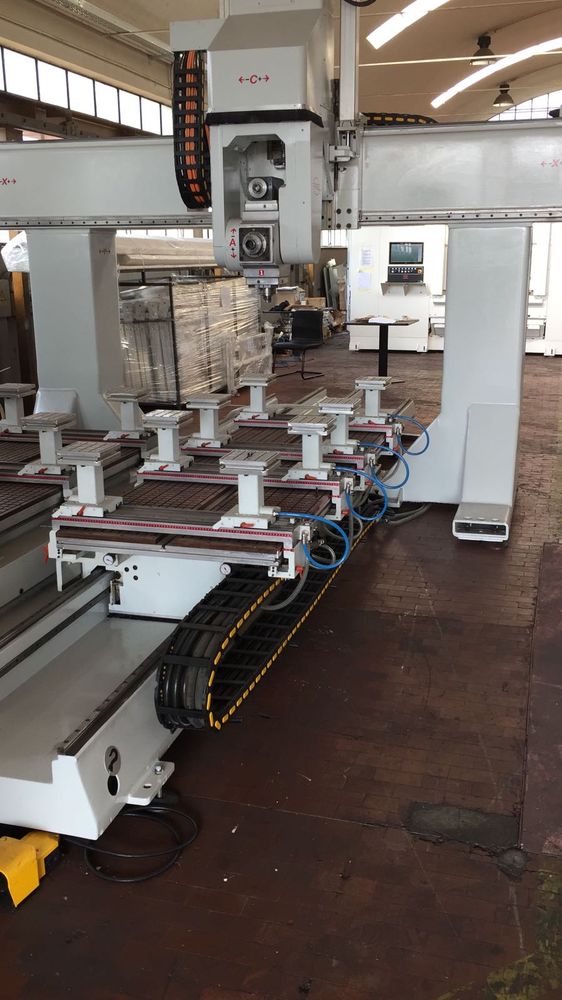

Pade SPIN SL 5-axis

Technical specifications::
X-axis travel - 2800 mm
The distance between columns is 2300 mm
Stroke along Y1, Y2 - 3950 mm
Z-axis travel 900 mm
Axis A unlimited
B-axis +/- 370°
X-axis speed 80 mm
Y-axis speed 60 mm
Z-axis speed 60 mm
2 Flat work tables
Worktable dimensions: 814 (X) x 2500 (Y)
Vacuum pump 2 x 7.5 kW
OSAI Management
PADEeasy program
Remote control available
T5 working head
Spindle speed 18000 rpm
Power of each spindle: 3 x 7.5 kW / 1 x 5.5 kW
Spindle chuck ER40, ER25
Power supply 400 V / 50 Hz
Installed capacity 50 kW
Average power consumption 31 kW
Compressed air supply 7 bar
The cross-section of the power cable is 25 mm2

SPIN SL, X= 2800, Y= 3950, Head rotation around axis A (tool change) = unlimited, Head rotation around axis C (horizontal plane) = +/- 370°
The T5 working head has three independent 7.5 kW electric spindles and one dual 5.5 kW electric spindle.
Max. speed is 18,000 rpm. Ceramic bearings.
Two working flat vacuum tables of the FLAT type, measuring 814 x 2500 mm each + vacuum tables of the TANDEM type on movable crossbars, a total of 8 + 8 TANDEM tables.
2 vacuum pumps with a capacity of 250 m3/h each
OSAI CNC digital control
PADEeasy program
Teleservice
