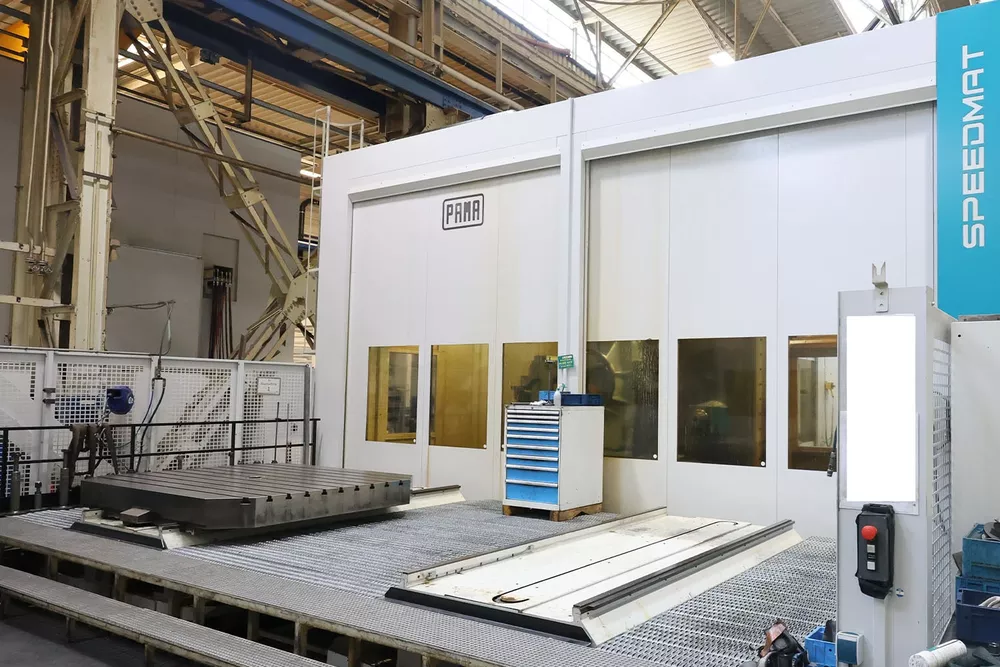

Pama SPEEDMAT 4/TR 25 160 mm 3000 rpm

X-axis travel 4000 mm
Y-axis travel 3000 mm
Z-axis travel 2200 mm
Quill stroke 800 mm
Max. workpiece weight 20000 kg
Spindle diameter 160 mm
Max. torque at spindle 2346 Nm
Total power requirement 65 kW
Work table clamping surface 2500 x 2000 mm
Work table height above floor 800 mm
X-axis feed speed 0.5 to 10000 mm/min
Y-axis feed speed 0.5 to 10000 mm/min
Z-axis feed speed 0.5 to 10000 mm/min
Rapid traverse X/Y/Z 25 / 25 / 25 m/min
Max. feed force X/Y/Z 28000 / 27000 / 28000 N
Spindle speed gear stage 1 6 to 848 rpm
Spindle speed gear stage 2 850 to 3000 rpm
Tool magazine 306 slots
Tool magazine max slot length 700 mm 54
Tool magazine max slot length 450 mm 54
Tool magazine max slot length 300 mm 63
Tool magazine max slot length 200 mm 135
Tool max weight 35 kg
Tool max diameter with free auxiliary slots 325 mm
Tool max diameter without free secondary spaces 105 mm
Tool taper ISO 50 BIG PLUS DIN 69871
Approx. 30 SK 50 tool holders
Measuring probe
Coolant system with paper belt filter & chip conveyor
Cooler
Oil mist extraction
Fixators
Documentation
