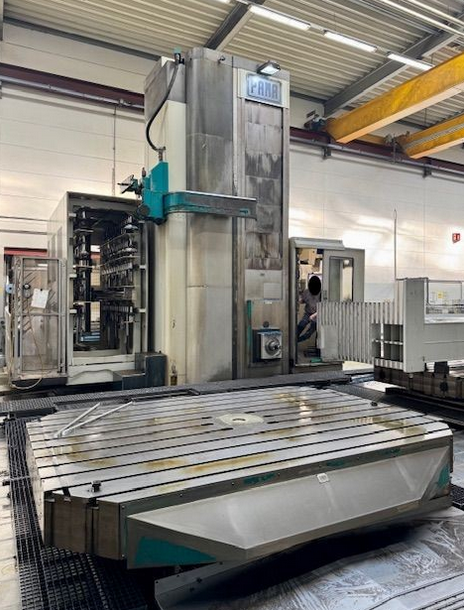

Pama SPEEDRAM 2000 150 mm 3,500 RPM

X-Axis Travel: 12,000 mm
Y-Axis Travel: 3,500 mm
Z-Axis Spindle Stroke: 1,200 mm
W-Axis RAM Dimensions: 400 x 400 mm
Table Longitudinal Travel (V1-V2): 2,000 mm
Table Feed Speed (V1-V2): 0.5 – 15,000 mm/min
Table Rapid Traverse (V1-V2): 45,000 mm/min
Table Rotation (B1-B2): 360°
Control: Heidenhain iTNC 530
Electronic Handwheel
Chip Conveyor (2023)
CE Marked
Documentation
Spindle Diameter: 150 mm
Spindle Speed Range: 6 – 3,500 RPM
Spindle Motor Power: 60 kW
Spindle Taper: ISO 50 / DIN 69871
RAM Spindle Diameter: 254 mm
Front Spindle Bearing Inner Diameter: 200 mm
Vertical Milling Head Model TTL 2 18 360
Vertical Milling Head Spindle Speed: 2,500 RPM
Tool Magazine Capacity: 147 Tools
Maximum Tool Weight: 35 kg
Maximum Tool Length: 700 mm
Tool Holder Standard: DIN 69871
Clamping Plate Dimensions: 2 x 1,500 x 4,500 mm
Clamping Plate Dimensions: 1 x 2,000 x 4,500 mm
Clamping Plate Load Capacity: 15,000 kg/m²
Table Size: 2,000 x 3,000 mm
Table Load Capacity: 40 t
Connected Load: 195 kVA
Machine ON Hours: 128,338 h
Program Run Hours: 51,894 h
Control ON Hours: 41,702 h
