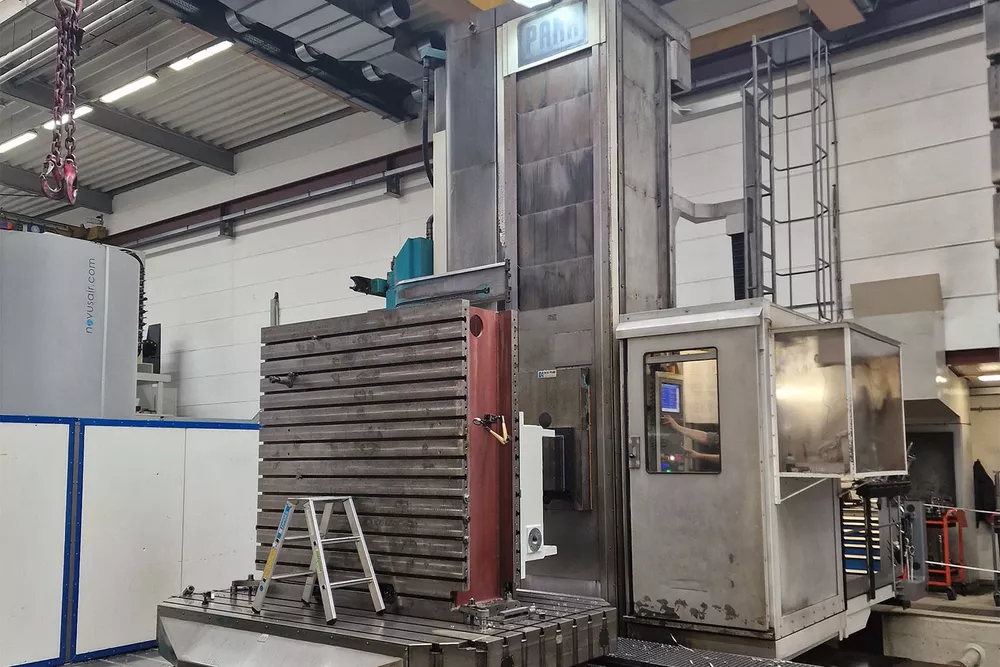

Pama SPEEDRAM 2000 254 mm 3,500 rpm

X-Axis Travel (Longitudinal/Table): 12,000 mm
X-Axis Programmable Working Feed: 0.5 – 6,000 mm/min
X-Axis Rapid Feed: 20,000 mm/min
X-Axis Motor Speed: 3,000 rpm
Y-Axis Travel (Vertical/Column): 3,500 mm
Y-Axis Programmable Working Feed: 0.5 – 6,000 mm/min
Y-Axis Rapid Feed: 20,000 mm/min
Y-Axis Motor Speed: 3,000 rpm
Y-Axis Nominal Motor Torque: 42 Nm
Z-Axis (Spindle Head) Drill Spindle Diameter: 150 mm
Z-Axis Axial Stroke: 1,200 mm
Z-Axis Rapid Traverse: 20,000 mm/min
Z-Axis Spindle Internal Cone: DIN 69871, ISO 50
Z-Axis Drill Spindle Diameter: 254 mm
Z-Axis Front Spindle Bearing Inner Diameter: 200 mm
RAM Dimensions: 400 x 400 mm
W-Axis Axial Stroke: 1,000 mm
W-Axis Rapid Traverse: 15,000 mm/min

Total Axial Stroke (Z+W): 2,200 mm
Nominal Torque Spindle Motor W and Z Axis: 42 Nm
Number of Spindle Gear Stages: 2
Spindle Speed Range: 6 – 3,500 rpm
Spindle Motor Power: 60 kW

Clamping Plate Dimensions: 2 x 1,500 x 4,500 mm, 1 x 2,000 x 4,500 mm
Clamping Plate Load Capacity: 15,000 kg/m²
Clamping Plate Thickness: 300 mm
Clamping Plate T-Slot Dimensions: 28 H12, DIN 650 mm
Clamping Plate T-Slot Centre Distance: 250 mm
Clamping Plate Surface Finish: DIN 876/III

Workpiece Table Dimensions (V1-B1 / V2-B2): 2,000 x 3,000 mm
Workpiece Table T-Slot Dimensions: 28 mm³
Workpiece Table T-Slot Centre Distance: 180 mm
Workpiece Table Floor Height: 650 mm
Workpiece Table Load Capacity: 40 t

Longitudinal Stroke (Axis V1-V2): 2,000 mm
Feed Speed (Axis V1-V2): 0.5 – 15,000 rpm
Rapid Traverse (Axis V1-V2): 45,000 rpm
Table Rotation (Axis B1-B2): 360°
Rapid Feed (Axis B1-B2): 0.0005 + 2 rpm
Motor Speed (Axis B1-B2): 2,000 rpm
Motor Speed (Axis V1-V2): 3,000 rpm
Nominal Motor Torque (Axis B1-B2 and V1-V2): 58 N

Tool Rack Magazine ATC 13-150 R 147 Max Capacity: 147 pcs
Tool Rack Max Tool Weight: 35 kg
Tool Rack Max Tool Length: 700 mm
Tool Taper: DIN 69871
Tool Change Time: 28 sec

Milling Head Model TTL 2 18 360
Milling Head Tool Holder: ISO 50, DIN 69871
Milling Head Max Spindle Power: 18 – 214 kW
Milling Head Max Spindle Speed: 2,500 rpm
Milling Head Transmission Ratio: 1:1
Milling Head Spindle Indexing +/- 90°: 181 positions per 1°
Milling Head Indexing +/- 180°: 360 positions per 1°
Milling Head Max Torque: 800 Nm

CNC Control: Heidenhain iTNC 530
Electronic Handwheel
Chip Conveyor (2023)
CE Marking
Documentation
Power Supply Connected Load: 195 kVA
Power Supply Frequency: 50 ±1% Hz
Operating Voltage: 400 ±10 V
Cabinet Lighting Voltage: 220 V
Solenoid Valve Voltage: DC V
