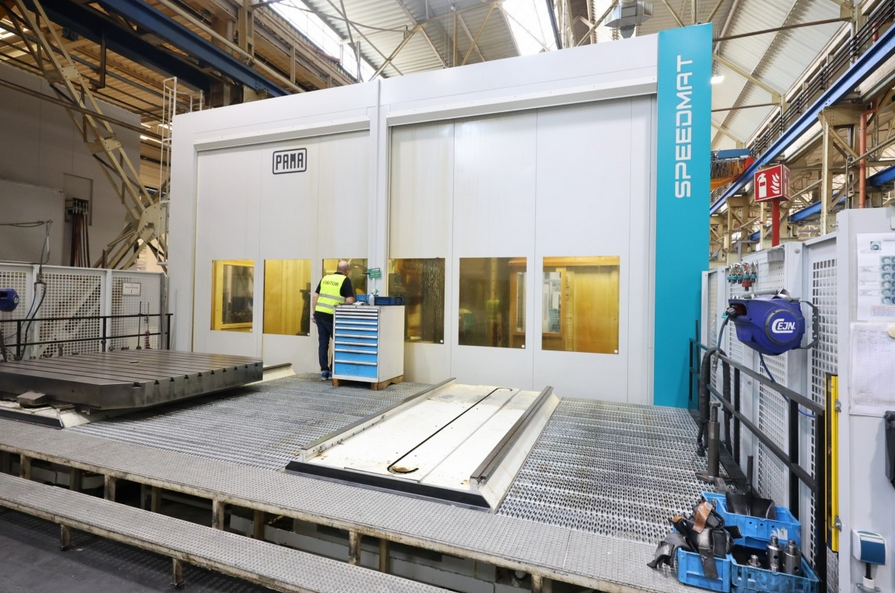

Pama SPEEDMAT 4/TR 25 3 Axis

X travel 4000 mm
Y travel 3000 mm
Z travel 2200 mm
Quill stroke 800 mm
Control Siemens Sinumerik 840 D
Workpiece weight max. 20000 kg
Tool taper ISO 50 BIG PLUS DIN 69871
Max. torque at spindle 2346 Nm
Spindle diameter 160 mm
Spindle speed gear stage 1: 6–848 rpm
Spindle speed gear stage 2: 850–3000 rpm
Total power requirement 65 kW
Machine weight approx. 50000 t
Machine dimensions approx. 12.8 x 11.8 x 5.7 m
Worktable clamping surface 2500 x 2000 mm
Table height above floor 800 mm
Feed speed X axis 0.5–10000 mm/min
Feed speed Y axis 0.5–10000 mm/min
Feed speed Z axis 0.5–10000 mm/min
Rapid traverse X/Y/Z 25/25/25 m/min
Max. feed force X axis 28000 N
Max. feed force Y axis 27000 N
Max. feed force Z axis 28000 N
Tool magazine 306 slots
Tool magazine max. length 700 mm: 54
Tool magazine max. length 450 mm: 54
Tool magazine max. length 300 mm: 63
Tool magazine max. length 200 mm: 135
Max. tool weight 35 kg
Max. tool diameter with free auxiliary slots 325 mm
Max. tool diameter without free secondary slots 105 mm
Approx. 30 SK 50 tool holders
Measuring probe
Coolant system with paper belt filter and chip conveyor
Cooler
Oil mist extraction
Fixators
Documentation
