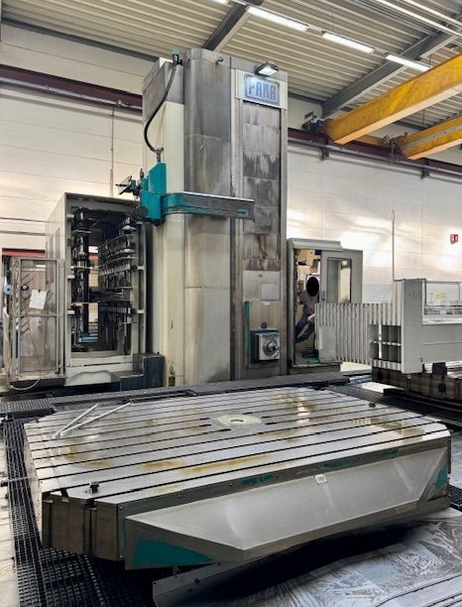

Pama SPEEDRAM 2000 150 mm 3,500 RPM

X-axis travel: 12,000 mm
Y-axis travel: 3,500 mm
Z-axis (spindle axial) travel: 1,200 mm
W-axis travel: not specified
Spindle diameter: 150 mm
Spindle bore front bearing: 200 mm
Spindle inner taper: DIN 69871, ISO 50
Spindle speed range: 6 – 3,500 RPM
Spindle motor power: 60 kW
Worktable dimensions V1/B1 – V2/B2: 2,000 × 3,000 mm
Worktable load capacity: 40 t
Table longitudinal travel V1-V2: 2,000 mm
Table feedrate V1-V2: 0.5 – 15,000 U/mm
Table rapid traverse V1-V2: 45,000 U/mm
Table rotation B1-B2: 360°
Clamping plate dimensions: 1,500 × 4,500 mm (2 pcs)
Clamping plate dimensions: 2,000 × 4,500 mm (1 pc)
Clamping plate load capacity: 15,000 kg/m²
Tool magazine capacity: 147
Maximum tool weight: 35 kg
Maximum tool length: 700 mm
Tool taper: DIN 69871
Milling spindle type: TTL 2 18 360
Milling spindle taper: ISO 50, DIN 69871
Milling spindle max speed: 2,500 RPM
Control: Heidenhain iTNC 530
Equipment: Electronic handwheel
Equipment: Chip conveyor (2023)
Equipment: CE marking
Equipment: Documentation
Total power requirement: 195 kVA
