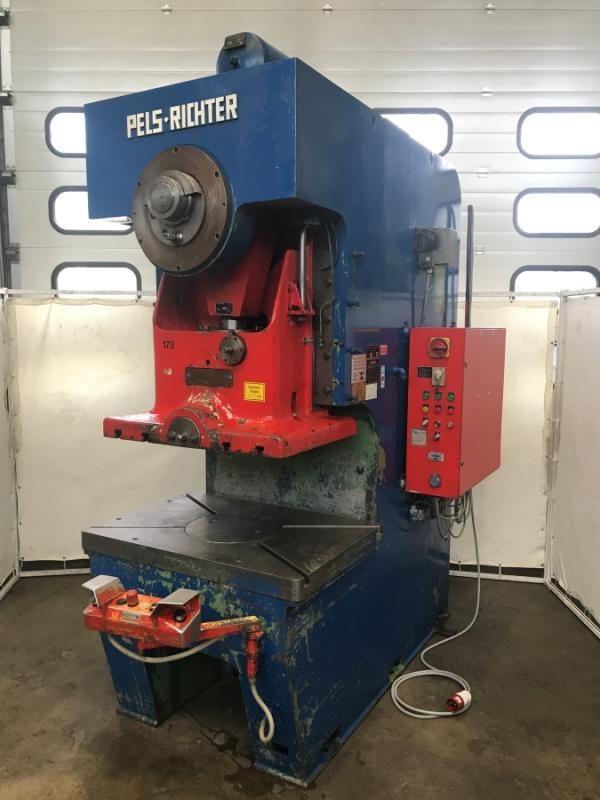

Pels PELS-RICHTER PEKR 125 125 ton

Ref : 2757864-3-AW

Condition : Used

Manufacturer : Pels

Model : PELS-RICHTER PEKR 125

Pressure : 125 ton

Year(s) : 1967

Quantity : 1

Location : Seller or machines location:
EUROPE (Western and Northern)

Press Force: 125 ton
Stroke Adjustment: 6–115 mm
Ram Adjustment: 100 mm
Ram Maximum Installation Height: 450 mm
Ram Pin Bore: Ø 50 mm
Ram Speed: 60 strokes/min
Ram Area: 890 x 650 mm
Table Size: 1100 x 750 mm
Table Opening Diameter: 400 mm
Table Height Above Floor: 900 mm
Motor Power: 7.5 kW
Machine Dimensions: 2300 x 1450 x 3030 mm
Machine Weight: 10 ton

Features / Equipment
Overload Protection via Fracture Plate in Ram
Pneumatic Clutch-Brake Combination
Ram Counterbalance Cylinder
Manual Ram Adjustment
Two-Hand Operation
Cam-Actuated Mechanism
Centralized Lubrication
Stroke Counter
Good Condition
