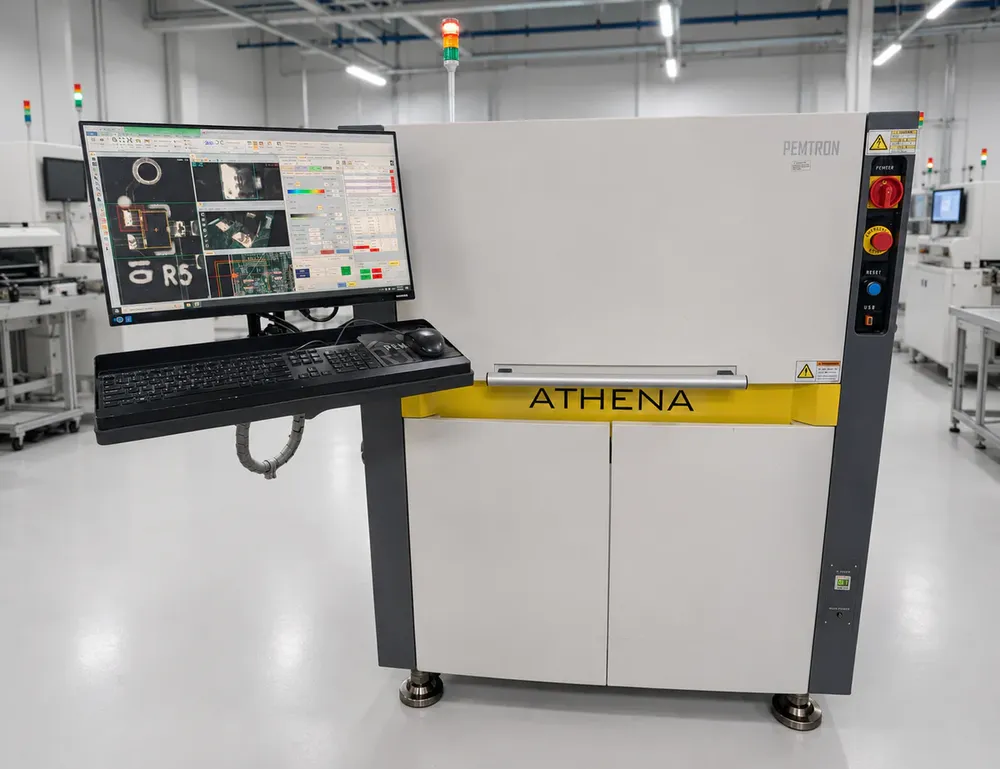

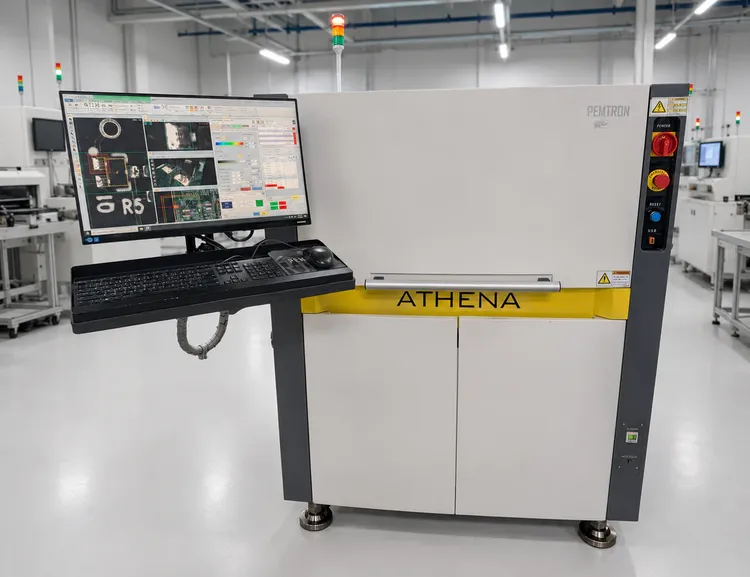

Pemtron Athena L 3D AOI

DOM: 3/15/2023
Linear motor motion stage
Max board size: 510 x 510 mm
Board thickness: .4 - 7.0mm
PCB Clearance: 50mm top and 50mm bottom
O/S : Windows 10 Enterprise
Optional Side cameras
Projection type 12(8+4)
12MP View works camera
Features per the OEM:

Advanced 3D technology
Stable and Accurate 3D realization by installing additional projectors
- 3D Formation of Chip among Dense Components and Narrow Parts
- 3D image Formation identical to a Real Image
Improved Repeatability
- Accurate 3D inspection makes repeatability more reliable
Simultaneous Inspection Algorithm (2D and 3D)
Tele-centric Lens Offers Higher Accuracy & Detection
High-Speed CPU & Image Process
User-Friendly GUI
