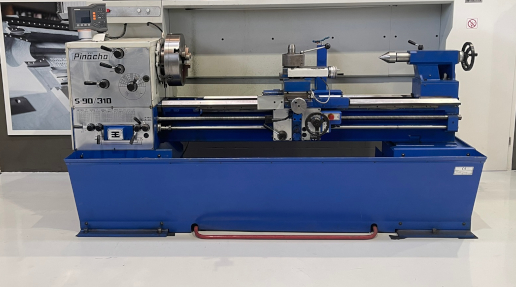

Pinacho Engine Lathe 1500 rpm S-90 / 310
Ref :
2788135-3-AW
Condition :
Used
Manufacturer :
Pinacho
Type :
Engine Lathe
Spindle Speed :
1500 rpm
Model :
S-90 / 310
Year(s) :
-
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Center height: 310 mm
Distance between centers: 1625 mm
Turning diameter in gap: 880 mm
Swing over bed: 620 mm
Turning diameter over longitudinal slide: 580 mm
Turning diameter over cross slide: 425 mm
Bed width: 350 mm
Gap length in front of faceplate: 200 mm
Spindle bore: 80 mm
Spindle speeds: 30 – 1500 rpm
Number of spindle speeds: 12
Machine weight: 1805 kg
