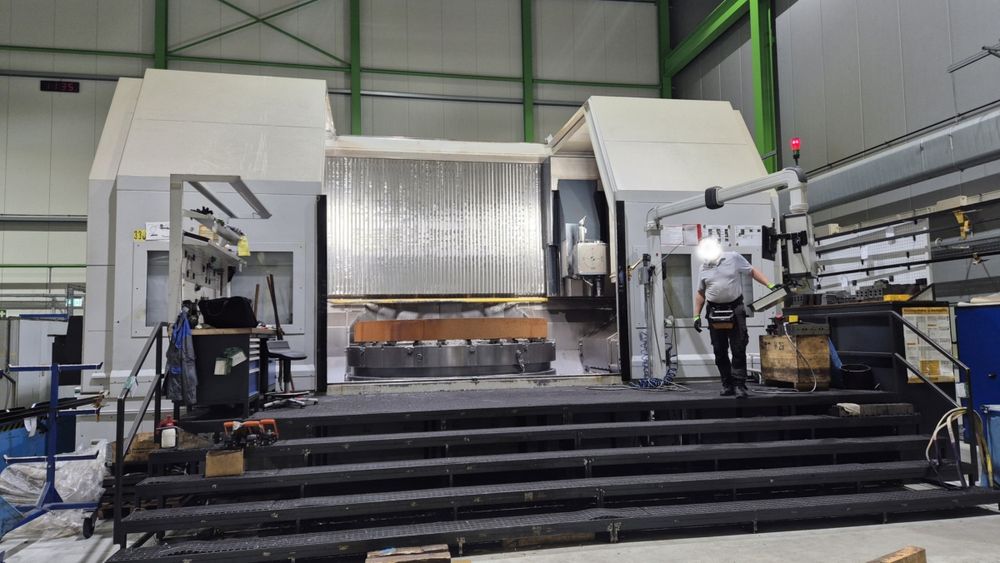

Pittler PV 4000 / 1-2 Swing diameter: 3800 mm

X1 axis travel: 2800 mm
X2 axis travel: 3200 mm
Z axis travel: 1000 mm
Rapid traverse X axis: 32 m/min
Rapid traverse Z axis: 20 m/min

Control: Siemens 840 D sl
Double tool holder, Capto C8
Tool magazine, left: 25 stations
Tool magazine, right: 41 stations
Max tool diameter: 150 mm
Max tool weight: 20 kg
Tool length: 400 mm
Tool cleaning with air
Chip conveyor
Coolant system 6 bar, 80 l/min
Knoll paper belt filter
High-pressure coolant pump 70 bar
Turning height: 750 mm

Faceplate speed: 100 rpm
Faceplate torque: 67,000 Nm at 40% duty cycle
Faceplate drive power: 200 kW at 100% duty cycle
Load capacity (chuck, clamping jaws, workpiece): 35,000 kg

Tool carrier speed: up to 6000 rpm
Tool carrier torque: 120 Nm at 100% duty cycle
Direct coolant supply to tool holders
Double tool holder with swivel axis
For turning and drilling (MFU) with tool magazine

Chuck: Röhm lever chuck KFG 3500/3/6/12
