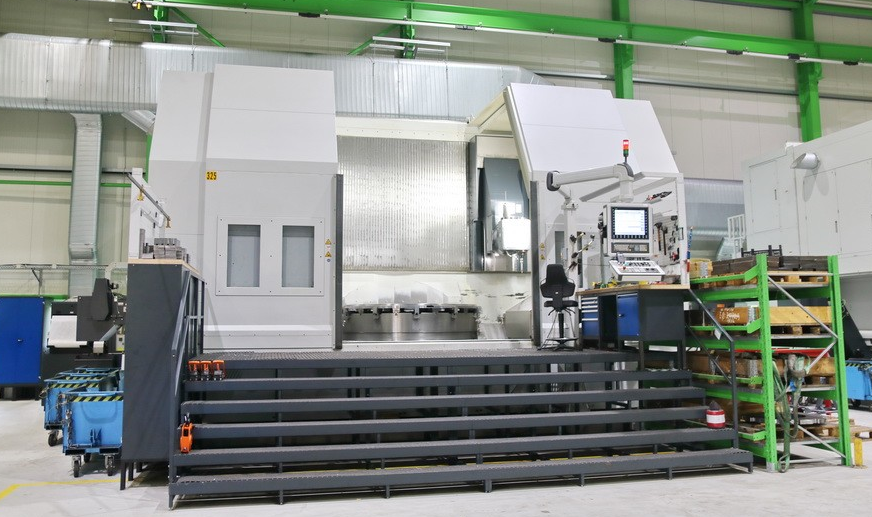

Pittler PV 2500 Main spindle turning speed max. 230 min⁻¹

X axis travel 2700 mm
Z axis travel 2000 mm
C axis B 0 - 270°
Control 840 D sl Siemens
Main spindle power 206 kW
Main spindle torque 120 Nm
Swing diameter max. 3000 mm
Spindle flange diameter 1100 mm
Driven tool spindle speed max. 6000 min⁻¹
Tool mount Capto C8
Number of tool positions 25
Max. tool weight 20 kg
Max. tool length 400 mm
Workpiece diameter at full load 150 mm
Rapid traverse X 40 m/min
Rapid traverse Z 24 m/min
Feed power X/Z 22 kN
Total power requirement 200 kVA
Machine weight 30000 kg
Machine dimensions 10.4 x 6.3 x 5.7 m
Automatic front door
Chip conveyor 2x
Coolant system 6 bar
Electronic hand wheel
High pressure coolant 70 bar
Hydraulic system
Paper band filter
Signal light
Through spindle coolant
Retractable step guards
Coolant circulation system
Oil hose skimmer
SIEMENS Safety integrated
Network interface / data transmission DNC option
Variable speed range to prevent vibrations
Air cleaner, electrostatic precipitator
Touch probe for in-process workpiece measurement
Walk-in work area
