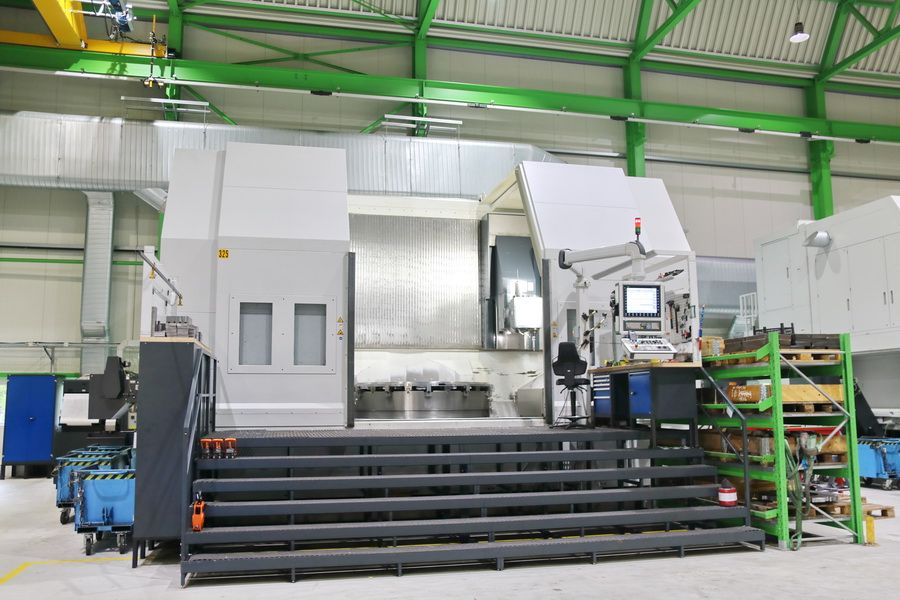

Pittler PV 2500 Maximum swing diameter 3000 mm

Axis travel X 2700 mm
Axis travel Z 2000 mm
Control Siemens 840D sl
ProgramSYNC software option
Network interface DNC option
Touch probe for in-process workpiece measurement
Siemens Safety Integrated
Main spindle speed 230 rpm
Main spindle power 206 kW
Maximum torque 120 Nm
Tool taper Capto C8
B axis swivel range 0–270°
Driven tool speed 6000 rpm
Tool magazine 25 positions
Maximum tool weight 20 kg
Maximum tool length 400 mm
Turning diameter 2800 mm
Spindle flange diameter 1100 mm
Rapid traverse X 40 m/min
Rapid traverse Z 24 m/min
Feed force X/Z 22 kN
12-jaw compensating chuck
Retractable steps
Coolant circulation system
Coolant conditioning
Oil hose skimmer
Air purifier electrostatic dispersal
Walk-in work area
Automatic front door
Chip conveyor 2 units
Coolant system 6 bar
High pressure coolant 70 bar
Paper band filter
Electronic handwheel
Hydraulic system
Signal light
Through spindle coolant
Total power requirement 200 kVA
Machine dimensions 10.4 × 6.3 × 5.7 m
Weight 120 t
