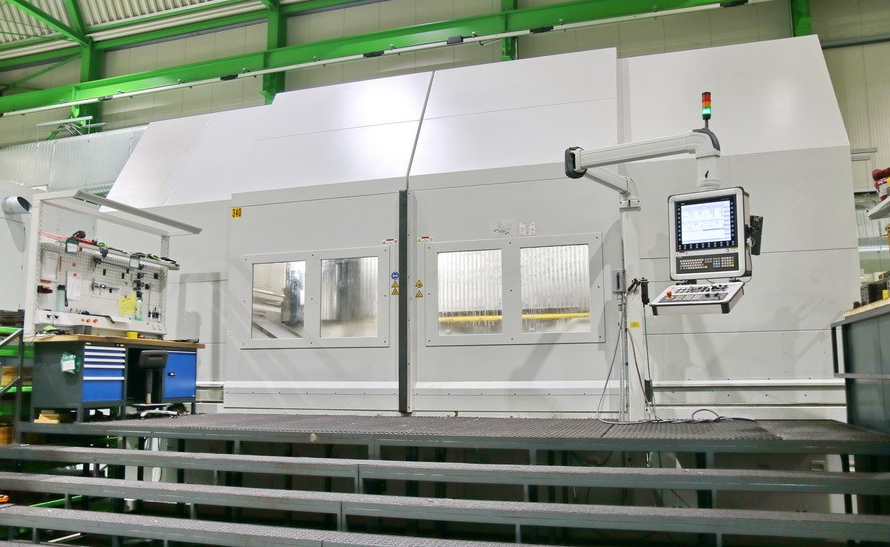

Pittler PV 4000 Swing diameter max. 3800 mm

X axis travel 3200 mm
Z axis travel 1000 mm
C axis B 0 - 270°
Control 840 D sl Siemens
Main spindle turning speed max. 100 min⁻¹
Main spindle power 200 kW
Main spindle torque 120 Nm
Main spindle gearbox 1:30
Spindle flange diameter 1900 mm
Driven tool spindle speed max. 6000 min⁻¹
Tool mount Capto C8
Number of tool positions 25
Max. tool weight 20 kg
Max. tool length 400 mm
Max. tool diameter 120 mm
Workpiece diameter at full load 150 mm
Rapid traverse X 32 m/min
Rapid traverse Z 20 m/min
Feed power X/Z 22 kN
Total power requirement 250 kVA
Machine weight 30000 kg
Machine dimensions 10.4 x 6.3 x 5.7 m
ATC 60 positions 2x
Automatic front door
B-axis stepless
Chip conveyor 2x
Coolant system 6 bar
Electronic hand wheel
High pressure coolant 70 bar
Hydraulic system
Paper band filter
Signal light
Through spindle coolant
Retractable foot guards
Coolant circulation
Oil hose skimmer
SIEMENS Safety integrated
Network interface / data transfer DNC option
Remote diagnostics for the NC area
Teleservice for integrated PLC of Sinumerik 840 D
Ethernet connection in control cabinet
Variable speed range to prevent vibrations
Air purifier, electrostatic separation
Measuring probe for in-process workpiece measurement
Walk-in work area
