PRESEZZI 1250 MT Presezzi Brass Rod Oil Hydraulic Extrusion Press Line w/ OCN Handling System

PRESEZZI 1250 MT
Year: 2009

Press tonnage: 1250 MT
Working pressure: 260 bar
Billet diameter: 145 mm
Maximum billet length: 650 mm
Main cylinder type: single acting
Main cylinder ram diameter: 760 mm
Main cylinder power: 1149 MT
Side cylinders type: double acting
Side cylinder bore: 160 mm
Side cylinder rod diameter: 100 mm
Thrust force during extrusion: 107 ton
Thrust force during return: 65 ton
Total main and side cylinder thrust force: 1256 ton
Container movement type: double acting
Container bore: 160 mm
Container rod diameter: 100 mm
Sealing force at 300 bar: 107 ton
Opening force at 280 bar: 65 ton
Shear cylinder type: double acting
Shear cylinder bore: 100 mm
Shear cylinder rod diameter: 70 mm
Shearing force: 20 ton
Ascending force: 10 ton
Main pump quantity: 3
Main pump manufacturer: Bosch Rexroth
Main pump type: A3VSO0500HSE/30R-PPH13N00
Main pump pressure: 260 bar
Main pump flow rate: 500 cm³/rotation
Main pump speed: 1000 rpm
Main pump power: 200 kW each
Auxiliary pump quantity: 1
Auxiliary pump manufacturer: Bosch Rexroth
Auxiliary pump type: A10VSO140DFR/31R-PPB-12NOO
Auxiliary pump pressure: 160 bar
Auxiliary pump flow rate: 140 cm³/rotation
Auxiliary pump speed: 1500 rpm
Auxiliary pump power: 55 kW
Pilot pump quantity: 1
Pilot pump manufacturer: Bosch Rexroth
Pilot pump type: A10VSO45 DFR/31-PPA12NOO
Pilot pump pressure: 160 bar
Pilot pump flow rate: 45 cm³/rotation
Pilot pump speed: 1500 rpm
Pilot pump power: 18.5 kW
Container pump quantity: 1
Container pump manufacturer: Bosch Rexroth
Container pump type: A11VO40DR/10R-NPC12NOO
Container pump pressure: 300 bar
Container pump flow rate: 40 cm³/rotation
Container pump speed: 1000 rpm
Container pump power: 15 kW

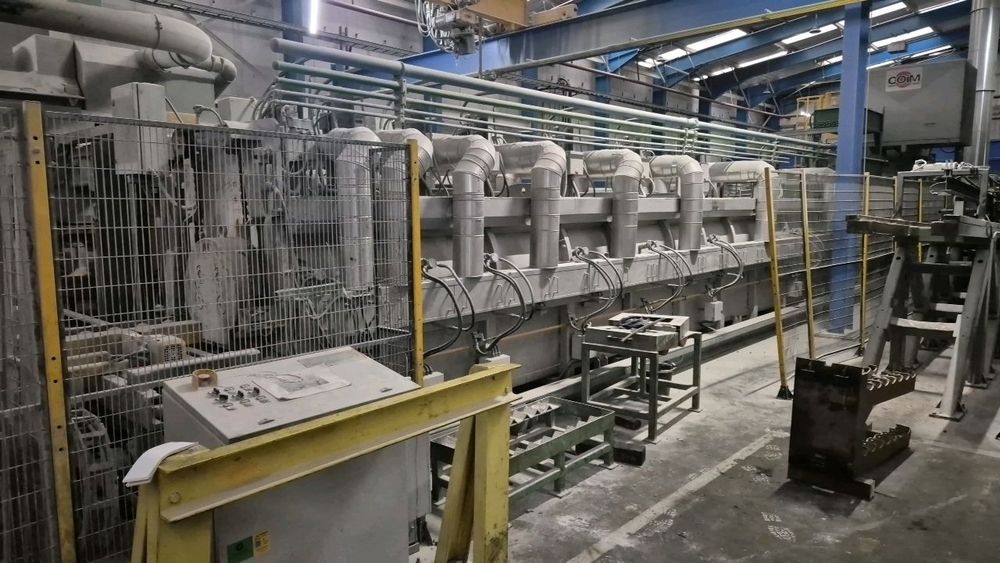

COIM automated billet furnace with infeed table
Billet loading station
Quick change die changeover table
Butt shear
OCN single puller
OCN walking beam cooling table
OCN entry finish saw feed table
OCN finish saw
OCN exit bundling table
Presezzi operator’s desk (left hand direction)
