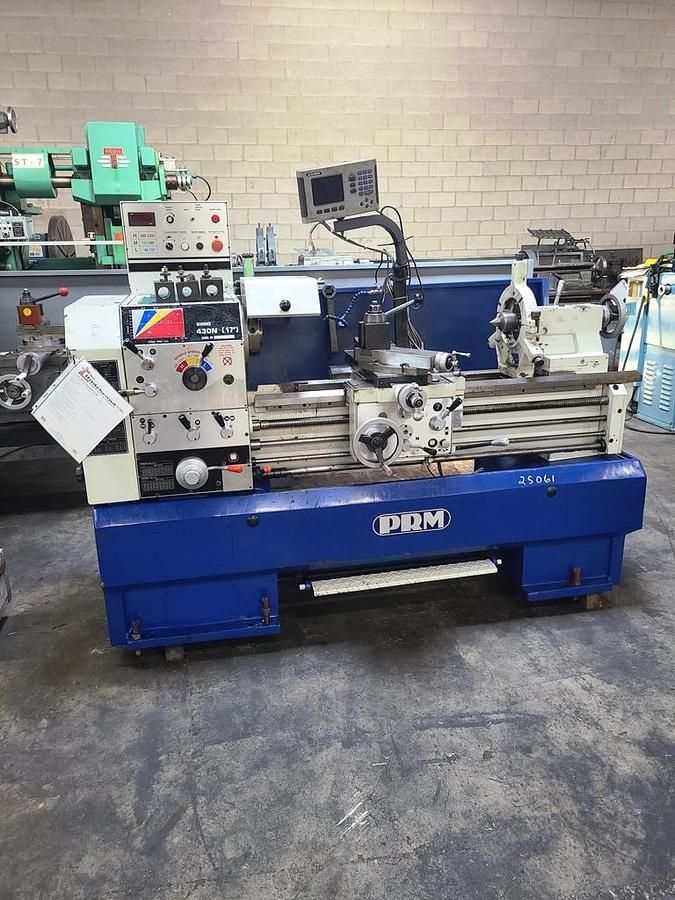

PRM Engine Lathe 2300 RPM 430N

Ref : 2744161-3-MT

Condition : Used

Manufacturer : PRM

Type : Engine Lathe

Spindle Speed : 2300 RPM

Model : 430N

Year(s) : -

Quantity : 1

Location : Seller or machines location:
AMERICA North (USA-Canada-Mexico)

Swing Over Cross Slide: 9-3/4"
Swing Over Bed Ways: 17"
Spindle Nose: D6 Camlock
Spindle Thru Hole: 2-5/16"
Swing in Gap: 26"
Variable Spindle Speeds: 42–157 / 157–586 / 586–2300 RPM
Tailstock Quill Taper: #4 Morse
2 Axis Acu-Rite Digital Readout System
15" 4 Jaw Chuck
10" 3 Jaw Chuck with D6 Camlock Mount
Aloris Tool Post and Assorted Holders
Inch – Metric Dials on Cross Slide and Top Compound
Thread Chasing Dial
Digital Display of Spindle RPM
Inch & Metric Feeds and Threads
Foot Pedal Spindle Brake
Full Length Rear Splash Guard
Hardened Ground Bed Ways
Steady Rest
7.5 HP Main Motor
Wired for 3 Phase, 60Hz, 220 / 440 Volts
Overall Size: 88" LR x 39" FB x 63" High
Weight: 3,900 Lbs
