PROCESS MANUFACTURING 42‑Tank Plating Plant
Year: 2012

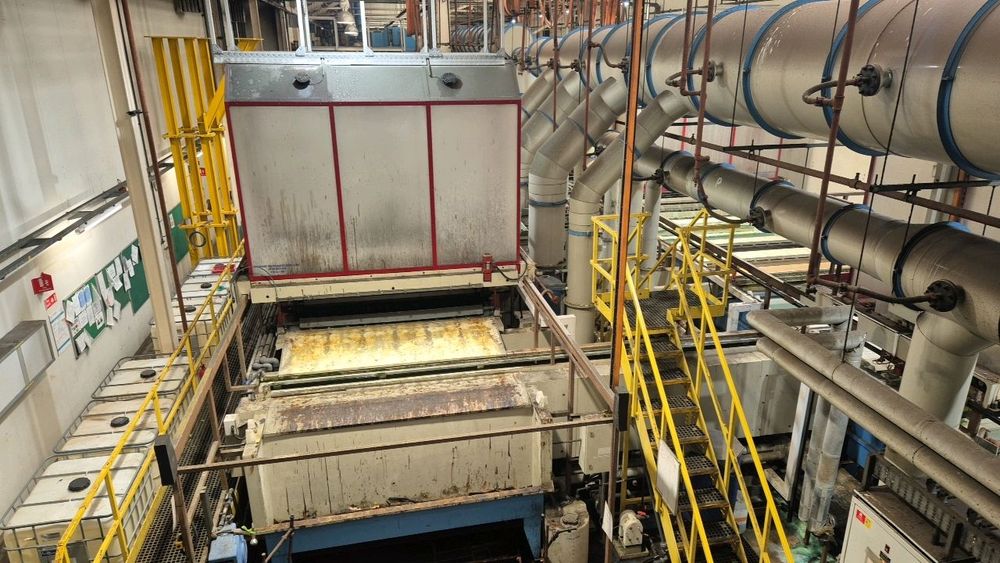

Fully automated nickel and chrome plating plant
Processes nickel-chrome, nickel-gold, jig strip
Suitable for brass and non-ferrous materials
42 plating tanks
55 m long overhead conveyor
Line dimensions: 37 m long × 12 m wide
Fume extraction system: 60,000 ft³/min in 3 systems
Automatic water top-up on tanks 2,3,4,7,10,11,14,15,33,36,39
Fan scrubber systems: 3 × 30,000 CFM
Babcock Wanson thermal fluid boiler: 2 units, TPC‑650 LN‑V, 756 kW max output
Well drying ovens: 2 units, internal wells 700 × 2810 × 1070 mm

Tank 1/42 load/unload tank size: 800 × 9476 × 1120 mm
Tank 2 soak clean temp 65–80 °C tank size: 1526 × 2803 × 1120 mm
Tank 3 ultrasonic clean temp 65–80 °C tank size: 1400 × 2803 × 1120 mm
Tank 4 soak clean temp 65 °C tank size: 770 × 2803 × 1120 mm
Tank 5 rinse tank size: 705 × 2803 × 1120 mm
Tank 6 rinse tank size: 705 × 2803 × 1120 mm
Tank 7 soak clean temp 65 °C tank size: 770 × 2803 × 1120 mm
Tank 8 rinse tank size: 705 × 2803 × 1120 mm
Tank 9 rinse tank size: 705 × 2803 × 1120 mm
Tank 10 soak clean temp 65 °C tank size: 770 × 2803 × 1120 mm
Tank 11 anodic clean temp 60 °C tank size: 1580 × 2803 × 1120 mm
Tank 12 rinse tank size: 705 × 2803 × 1120 mm
Tank 13 rinse tank size: 705 × 2803 × 1120 mm
Tank 14 dry acid salt temp 30 °C tank size: 630 × 2803 × 1120 mm
Tank 15 acid drip temp 30 °C tank size: 630 × 2803 × 1120 mm
Tank 16 rinse tank size: 705 × 2803 × 1120 mm
Tank 17 rinse tank size: 705 × 2803 × 1120 mm
Tank 19 nickel plate temp 60 °C tank size: 1580 × 2803 × 1120 mm
Tank 20 nickel plate temp 60 °C tank size: 1580 × 2803 × 1120 mm
Tank 21 nickel plate temp 60 °C tank size: 1580 × 2803 × 1120 mm
Tank 22 nickel do tank size: 630 × 2803 × 1120 mm
Tank 23 rinse tank size: 605 × 2803 × 1120 mm
Tank 24 rinse tank size: 605 × 2803 × 1120 mm
Tank 25 nickel batch etch tank size: 1600 × 2803 × 1120 mm
Tank 26 anode maintenance tank size: 450 × 2803 × 1120 mm
Tank 27 wet cross transfer tank size: 800 × 9476 × 1120 mm
Tank 28 chrome plate temp 42 °C tank size: 1600 × 2803 × 1120 mm
Tank 29 chrome plate temp 42 °C tank size: 1600 × 2803 × 1120 mm
Tank 30 chrome drag out tank size: 605 × 2803 × 1120 mm
Tank 31 rinse tank size: 640 × 2803 × 1120 mm
Tank 32 rinse tank size: 605 × 2803 × 1120 mm
Tank 33 chrome neutralise tank size: 630 × 2803 × 1120 mm
Tank 34 rinse tank size: 705 × 2803 × 1120 mm
Tank 35 rinse tank size: 705 × 2803 × 1120 mm
Tank 36 lead seal temp 42 °C tank size: 817 × 2803 × 1120 mm
Tank 37 rinse tank size: 705 × 2803 × 1120 mm
Tank 38 rinse tank size: 705 × 2803 × 1120 mm
Tank 39 hot rinse temp 80 °C tank size: 700 × 2803 × 1120 mm
Tank 40 dryer temp 80 °C tank size: 700 × 2803 × 1120 mm
Tank 41 dryer temp 80 °C tank size: 700 × 2803 × 1120 mm
