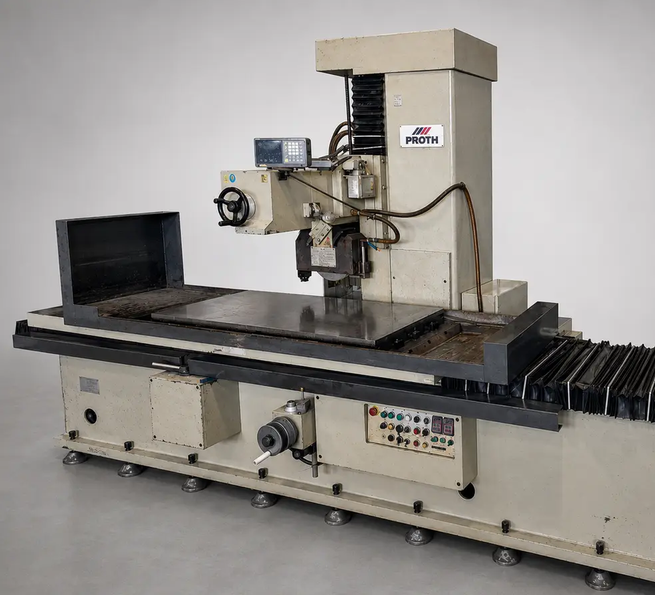

Proth PSGO-75150AHR

Table Size: 750 × 1,500 mm
Maximum Longitudinal Travel: 1,650 mm
Maximum Cross Travel: 810 mm
Maximum Grinding Height: 522 mm
Spindle Center Height: 700 mm
Table Load Capacity: 2,500 kg
Table Speed: 1–25 m/min
Automatic Cross Feed: 0.1–15 mm/stroke
Continuous Cross Feed: 2,000 mm/min
Grinding Wheel Size: 355 × 50 × 127 mm
Grinding Wheel Diameter: 355 mm
Grinding Wheel Width: 50 mm
Spindle Speed: 1,500 RPM
Spindle Motor: 7.5 kW
Hydraulic Motor: 5.6 kW
Electromagnetic Chuck
Coolant System
Filtration System
Wheel Balancing Equipment
Horizontal Spindle
Dimensions: 6.0 × 2.55 × 2.6 m
Weight: 11,000 kg
