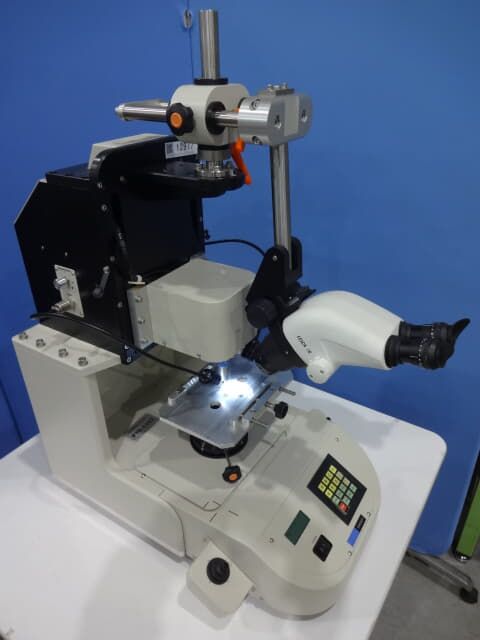

PTR-1102 Bonding Tester

Resca Bonding Tester PTR-1102

Specifications
• Included Load Cell: Shear LYZ500B (MAX 500g)
• Measurement Load Range: Shear 100kgf, Pull 20kgf, Push & Peel 5kgf
• Measurement Items: Pull, Push, Peel, Shear Test
• Measurement Speed: Pull, Push, Peel 0.001-5mm/sec, Shear 0.001-10mm/sec
• Stage Movement Range: X-axis ±50mm, Y-axis ±50mm, Rotation (arbitrary)
• Tool Movement Range: Z-axis Max 70mm
• Binocular Stereo Microscope: Leica S6, Total Magnification 7.5-48x
Eyepiece 16x, Objective Lens 0.75x, Zoom Magnification 0.63-4x
• Power Supply: AC100V 50/60Hz
* Dimensions and Weight: Approx. W500 x D700 x H900 mm, Approx. 80 kg

Equipment Status
* No instruction manual included
* Tools and load cells are only those shown in the photos.
* A work holder is attached to the stage,
and a fine adjustment mechanism is attached below the stage.
