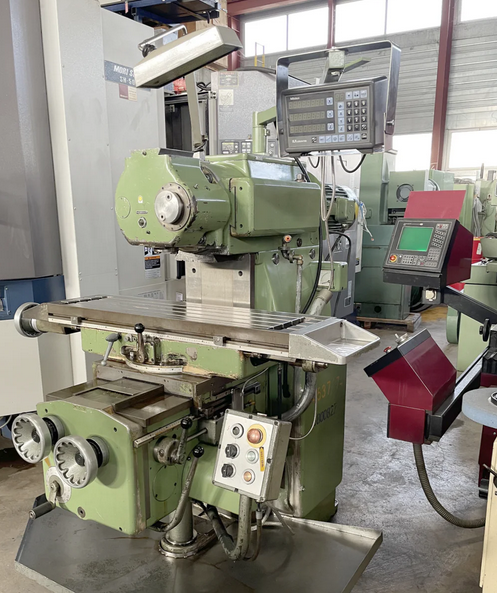

Reiden FU 100 AS 2000 RPM

X-Axis Travel: 700 mm
Y-Axis Travel: 250 mm
Z-Axis Travel: 470 mm
Upper Slide Travel: 400 mm
Rapid Traverse X-Axis: 2.5 m/min
Rapid Traverse Y-Axis: 2.5 m/min
Rapid Traverse Z-Axis: 1.0 m/min
Table Length: 1100 mm
Table Width: 300 mm
Spindle Speed: 45 - 2000 RPM
Spindle Speed Steps: 12
Spindle Taper: ISO 40
Longitudinal Feed: 18 - 800 mm/min
Transversal Feed: 18 - 800 mm/min
Vertical Feed: 7.2 - 320 mm/min
Feed Steps: 12
Motor Output: 6.0 CV
Voltage: 380 V / 50 Hz / 3 Phase
Machine Weight: 1900 kg
Machine Dimensions: 2000 x 1600 x 1700 mm
3-Axis Digital Readout
Mitutoyo Digital Readout
Coolant System
Lamp
Chip Tray
