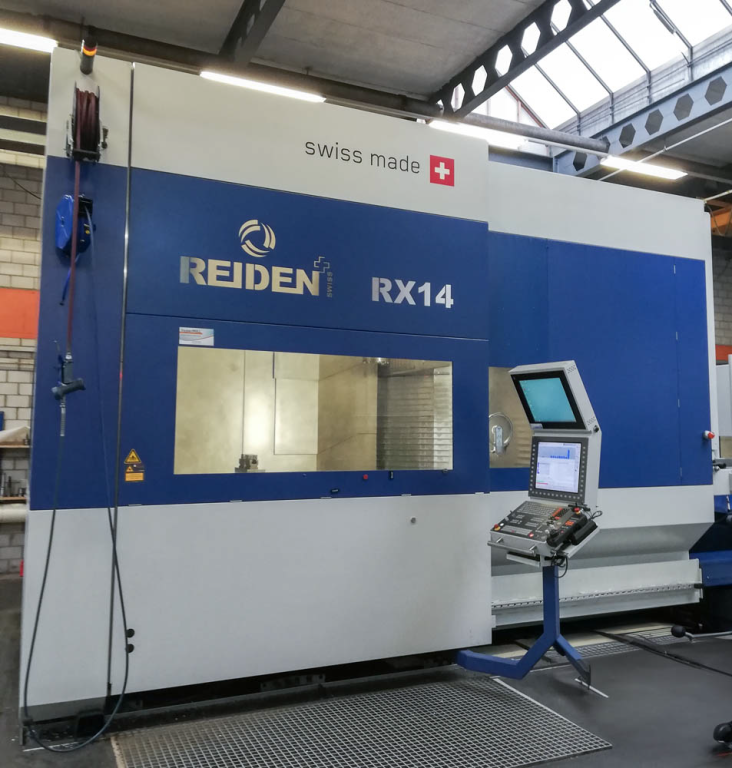

Reiden RX14 15,000 rpm

X-axis travel: 1,800 mm
Y-axis travel: 1,800 mm
Z-axis travel: 1,210 mm
A-axis rotation: -15° to +105°
Rapid traverse: 40 m/min
Control: HEIDENHAIN TNC640
Worktable dimensions: ø1,400 x 1,200 mm
T-Nut: 22H7 / 100 mm
Swing clearance: ø1,900 mm (limited up to 2,200 mm)
Maximum workpiece weight: 5,000 kg
Spindle speed: 15,000 rpm
Spindle drive power: 63/73 kW (100/40% ED)
Spindle torque: 300/348 Nm (100/40% ED)
Cooling through spindle center bar: 50
Tool holder: HSK-A100
Tool magazine slots: 92
Electronic handwheel: HEIDENHAIN HR410
Chip conveyor
High pressure pump
Collision monitoring: HEIDENHAIN DCM
Monitoring between machine and tool
Direct measuring systems on all axes: HEIDENHAIN
Rinsing pistol
Automatic opening and closing door
Spindle offset sensor: Micro Epsilon
Paper band filter system
Air blowing through spindle center, selectable via M-function
HEIDENHAIN HR550 FS electronic handwheel with radio transmission
Radio measuring sensor: BLUM TC60
Laser tool setting and breakage control: BLUM Novotest
Oil and emulsion mist separator
Machine running times under power: 17,991 h
Spindle working hours: 8,028 h
