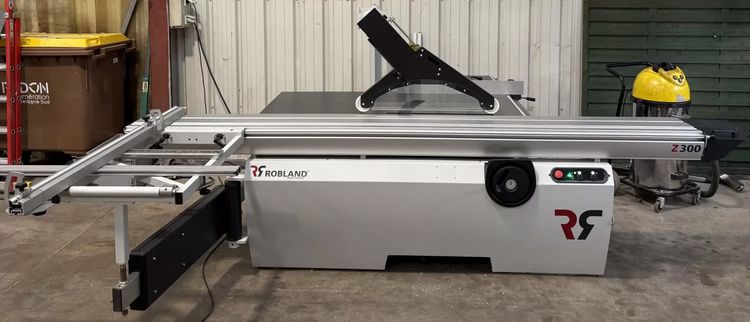

Robland Z300M

Format Saw with Scoring Unit
MACHINING CAPACITIES :
- Ripping length, carriage travel 3200 mm
- Maximum cutting width with parallel guide: 1400 mm
- Squaring capacity (end cutting, crosscutting) 3200 mm
- Tiltable blades 90 - 45°
Maximum cutting height at 90°: 90 mm & at 45°: 60 mm
- Blade speeds 3000/4000/5000 rpm
- Inciser speed 7000 rpm

COMPOSITION :
- Welded steel frame
- Worktop height 88 cm
Main table (LxD) 100 x 700 cm
Left-hand side extension of the table (WxD) 65x70 cm
- Blade guard suspended on a support arm
- Saw blade Max Ø315 mm Bore Ø30 mm
- Incising blade Ø 120 mm Bore Ø20 mm
- Display of height and tilt on the steering wheel
Blade control and parallel guide adjustment via manual settings
900x parallel guide, 100mm high
- Sliding carriage flush with the blade, 330 mm wide, with handle
Eccentric presser, clamping shoe (ripping stop) & pusher
Additional mitre cutting device equipped with a second 120 cm graduated ruler
with 1 reversible stop
- Squaring table (Side frame) WxD: 1000 x 550 mm
Telescopic and tiltable main graduated scale , L 1670 to 2670 mm with 2 reversible stops.
Intermediate supports in the frame 450 mm from the carriage with angle indication and one free and removable
End roller to aid loading/unloading

OTHER FEATURES :
- General power supply 400V. Three-phase 50Hz IN max A
- Automatic star-delta start
- 7 kW (9.5 hp) saw motor , 0.75 kW scoring motor
Suction: Top vent Ø 120 mm, bottom vent Ø 100 mm
- Recommended flow rate: 1200 m³/h, 20 m/sec
- CE marking, Lockable disconnect switch, Emergency stop buttons

Dimensions for transport when disassembled (LxWxH): 3.30 x 2.10 x 1.50 m
Weight: 800 kg
