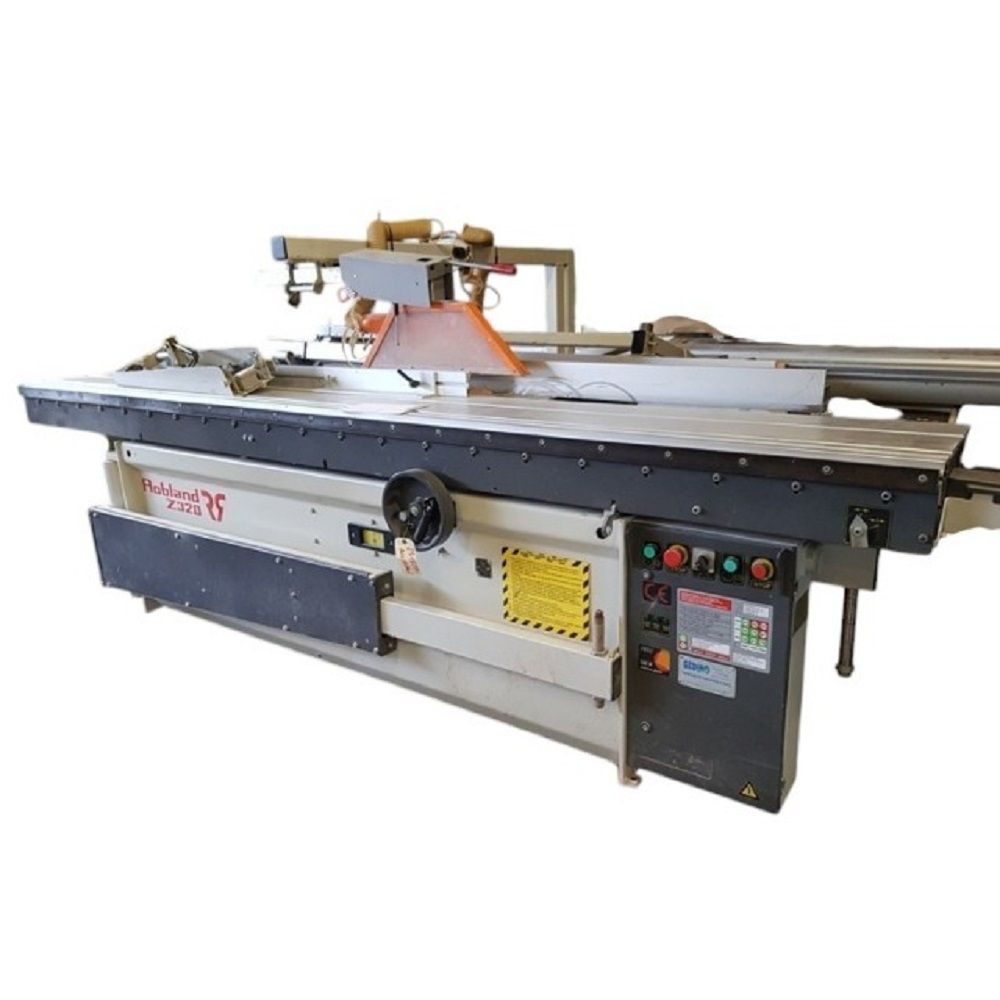

Robland Z320

SECTION SAW WITH SCORTING BLADE, WITH 3.20M FLUSH-TO-BLADE CARRIAGE

MAKING CAPACITIES:
- Ripping length, carriage travel: 3200 mm
- Maximum cutting width at the rip fence: 1380 mm
- Squaring capacity (end cutting, crosscutting): 3200 mm
- Blades tilt 90° - 45°
Maximum cutting height at 90°: 125 mm & at 45°: 100 mm
- Blade speeds: 3000/4000/5000 rpm
- Scoring saw speed: 7000 rpm rpm

COMPOSITION:
- Robust welded frame
- Worktop height: 89 cm
Main table (WxD): 910x720 mm
Left side table extension (WxD): 640x720 mm
- Blade guard suspended on a bracket
- ​​Saw blade max. Ø400 mm, bore Ø30 mm
- Scoring saw blade Ø120 mm, bore Ø20 mm
- Tilt and rotation speed display
Manual blade and rip fence control
Retractable 1100x100 mm parallel fence
- Sliding carriage flush with the blade, 3200x390 mm, with handle
- Squaring table (side frame) WxD: 1360x430 mm
End roller for loading/unloading assistance
Telescopic graduated ruler with 2 reversible/retractable stops

OTHER FEATURES:
- 400V main power supply, three-phase 50Hz
- Star-delta starter
- Saw motor newer than the machine: 5.5 kW
- Scoring motor 0.5 kW
Exhaust: Upper inlet Ø60 mm, lower Ø120 mm
Minimum recommended airflow: 1300 m3/h, air speed 20 m/s
- CE marked
Padlockable disconnect switch, mushroom-shaped stops

Floor space in operating order: 7135x3275x1400 mm
Transport space (LxWxH): 3200x2100x1400
Weight: 1100 kg
