Noack, Romaco N920 + C150 + PEWOPACK250 + CT2000, Blister Line

Consisting of

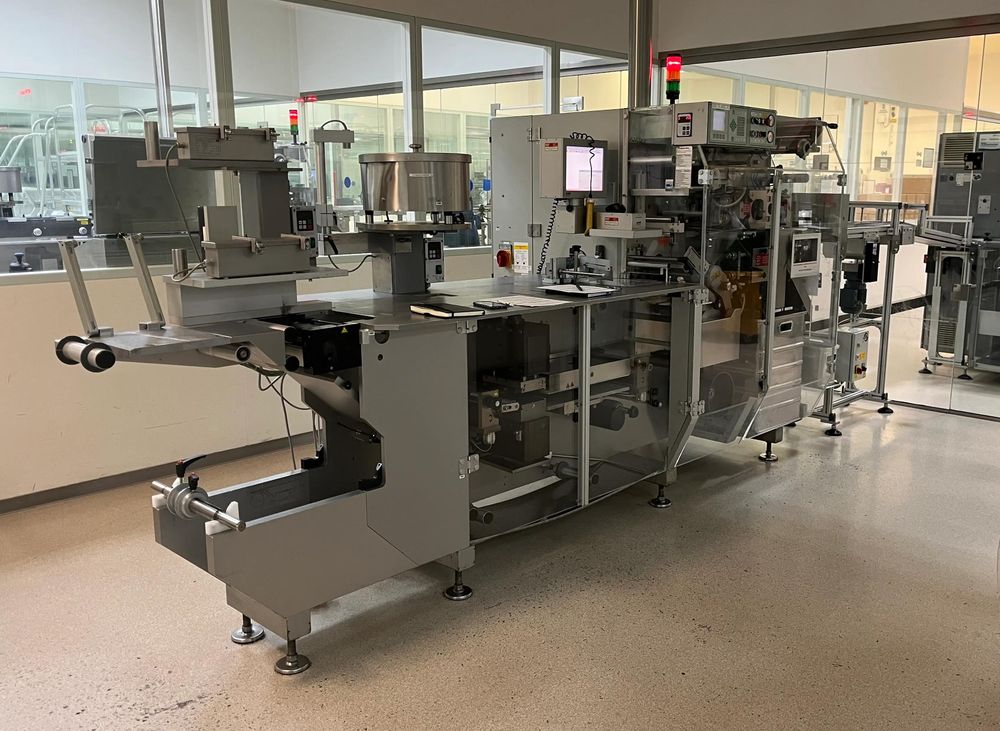

1) BLISTER PACKING MACHINE ROMACO NOACK, MODEL N921
Year of construction: 1999

Suitable for packaging tablets or capsules in PVC/aluminum blister packs.

MACHINE CHARACTERISTICS
Variable speed
Brush-fed tablet feeders
Vision system
Vacuum system
Maximum production: 130 cartons/min. (mechanical speed)
Maximum capacity: 80 forming cycles/min.
Maximum extraction depth: 12 mm
Maximum film width: 160 mm
Cartons size
Length: min. 70 mm - max. 150 mm
Width: min. 30 mm - max. 100 mm
Height: min. 15 mm - max. 85 mm

2) UHLMANN CARTONER, MODEL C150
Year of construction: 2008
Suitable for cartoning blister packs and for inserting brochures.

PRODUCTION CHARACTERISTICS
Production: 130 cartons/min. approx. (mechanical speed)
Cartons size
Length: min. 70 mm - max. 150 mm
Width: min. 30 mm - max. 100 mm
Height: min. 15 mm - max. 85 mm

3) PESTER PEWO PACK WRAPPER, MODEL PEWO PACK 250
Year of construction: 2008

Compact machine, with compact design for easy
and economical maintenance.
Wide range of accessories, e.g., wheels with brakes,
packing boards, and conveyor belts.
Easy belt replacement.

PRODUCTION CHARACTERISTICS
Production rate: up to 80 packages/min.
Film width: min.: 50 mm - max.: 250 mm
Film thickness: min.: 25 μm - max.: 100 μm
Reel diameter max: 300 mm
Min/max bundle dimensions
60 x 30 x 60 mm
360 x 180 x 250 mm

ENERGY CONSUMPTION
Power supply: 3x400V + N + PE / 50Hz
Operating pressure: 5 bar.

4) CHRIST WRAPPING MACHINE, MODEL CT2000
Year of construction: 2002

The CT2000 collection table is a fully automatic collection table
for intermediate storage of products with a compact,
high-quality balcony structure.
Easy-to-clean stainless steel coating.
Quick, tool-free format change with high repeat accuracy.
