Noack, Romaco N921, Blistering Machine

Romaco Noack N921, C150, PEWOPACK250, CT2000
Model: N921, C150, PEWOPACK250, CT2000

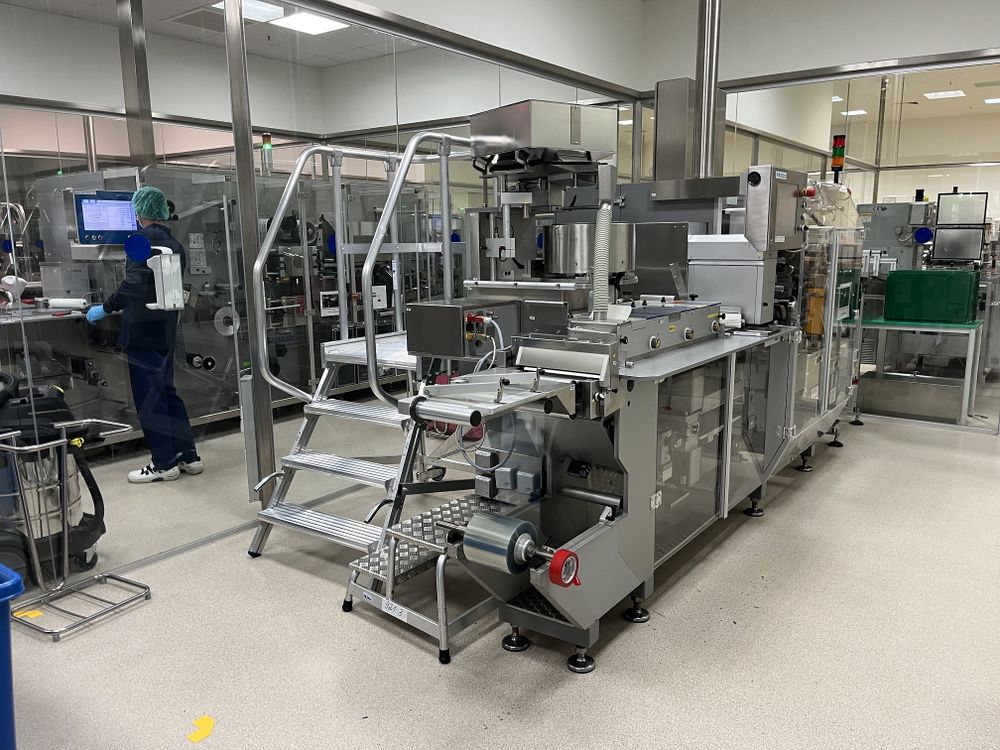

Rotary machine for blister packaging
Romaco's Noack N 921 range of blister packaging machines continues to set the standard for efficiency,
versatility, and technology in blister packaging. At less than four meters in length, the rotary sealer nevertheless offers a production rate of up to 500 blisters per minute, an unbeatable ratio of productivity to floor space. It also benefits from the latest servo technology, some of the best format changeover times in the industry without tools, and Noack's new single-panel concept for easier integration, as well as QuickFeed, the interchangeable feed unit with airglide system.

Key features
- Fast feed
- Latest servo technology for fast format changeover and
fast format changeover without tools
- Full cGMP compliance
- Balcony design
- XML control with touchscreen control panel
- Tool compatibility for continuous return on investment
- Ergonomic design for the operator
- Easy integration of in-line printing systems and
in-line safety systems
- Advanced product management

Applications
Tablets
Capsules
Soft gel
Capsules
Child/elderly-proof packaging
Cold aluminum
Multi-layer coating materials

Technical specifications:
Max. sheet width 210 mm
Max. forming depth 12 mm
Max. forming cycles 100/min.
Max. blister production 500/min.
Max. sheet forming reel diameter 700 mm
Max. sheet coating reel diameter 280 mm

Uhlmann C150
Year of manufacture: 2004
Intermittent motion cartoner for packaging small and medium-sized blister packs, with a high level of reliability and a long service life.

Technical specifications:
Technical specifications at a glance
Maximum output 150 cartons/min.
Intermittent operating mode
Application area: blister packs
Maximum carton dimensions [W x D x H]: 100 x 85 x 150 mm
Pitch: 5"
Maximum number of blister packs: 10
Maximum blister stack height: 80 mm
Types of interlocking and heat-sealed closures

Pewo pack 250:
Year of manufacture: 2000
Automatic packaging machine

Technical specifications:
Min./max. package dimensions:
- 60 x 30 x 60 mm [W x D x H] 360 x 180 x 250 mm [W x D x H].
Speed: up to 80 packages/min.
Power supply: 3x400V + N + PE / 50Hz
Operating pressure 5 bar.
Type of film that can be used: PE material.
Film width: min.: 50 mm - max.: 250 mm.
Film thickness: min.: 25 μm - max.: 100 μm.
Reel diameter: max.: 300 mm
T-4000 sealing unit with automatic flap folding.
Top and bottom sealing.
Power control with the SOCO SYSTEM controller ensures efficient separation and
high capacity.
The compact machine is available in two basic models, T-4000 and T-4200. The machine is very
easy to adjust to the dimensions of the standard box and can be adapted on both
sides.
Easy belt replacement.
Compact design.
Easy and economical maintenance.
Wide range of accessories, e.g., wheels with brakes, packing tables, and conveyor belts.

CT2000:
Year of manufacture: 2009
Collection table
CT2000 – More flexibility and less time pressure for operators at the end of the line
The CT2000 collection table is a fully automatic collection table for intermediate storage of products.
Compact, high-quality balcony structure
Ergonomic design with plenty of space for the operator's feet and knees
Easy-to-clean stainless steel coating
Quick format change without tools with high repeatability accuracy
Maintenance arm
Automatic detection of full table and shutdown of upstream machines

Technical specifications:
Operating voltage: 1x230 V 50 Hz
Control voltage: 24 V DC
