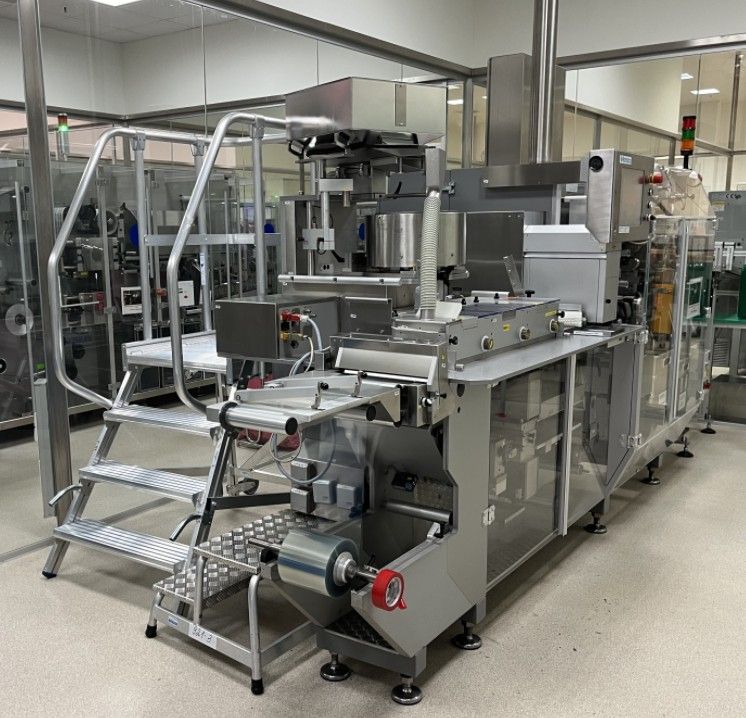

Noack, Romaco N921, Rotary Blister Packaging Machine

Romaco’s Noack N 921 range of Blister Packaging Machines continues to set the standards for efficiency,
versatility and technology in blister packaging.
Less than four meters long, the rotary sealing machine
nevertheless delivers output of up to 500 blisters/minute –
an unbeatable ratio of productivity to floorspace.
It also boasts the latest servo technology,
tool-free changeover times that rate among the best in the industry
and now Noack’s new single panel concept for ease of integration,
plus QuickFeed, the interchangeable feeding unit with airglide system.

Highlights
• QuickFeed
• Latest servo technology for quick and
tool-free format change
• Full cGMP compliance
• Balcony design
• XML control with touchscreen control panel
• Tooling compatibility for ongoing ROI
• Operator ergonomics
• Easy integration of online print and
security systems
• Advanced product handling
Applications
Tablets
Capsules
Soft Gels
Caplets
Child-resistant/senior-friendly packs
Coldform aluminum
Multi-layer lidding materials
Key Technical Data
max. Foil width210 mm
max. Forming depth12 mm
max. Forming cycles100/min.
max. Blister output500/min
max. Reel diameter forming foil700 mm
max. Reel diameter lidding foil280 mm

Key technical data
Max. sheet width 210 mm
Max. forming depth 12 mm
Max. forming cycles 100/min.
Max. blister production 500/min
Max. sheet forming reel diameter 700 mm
Max. coating sheet reel diameter 280 mm
