Noack, Romaco N921 + C150 + PEWOPACK250 + CT2000, Blister Line

Consisting of

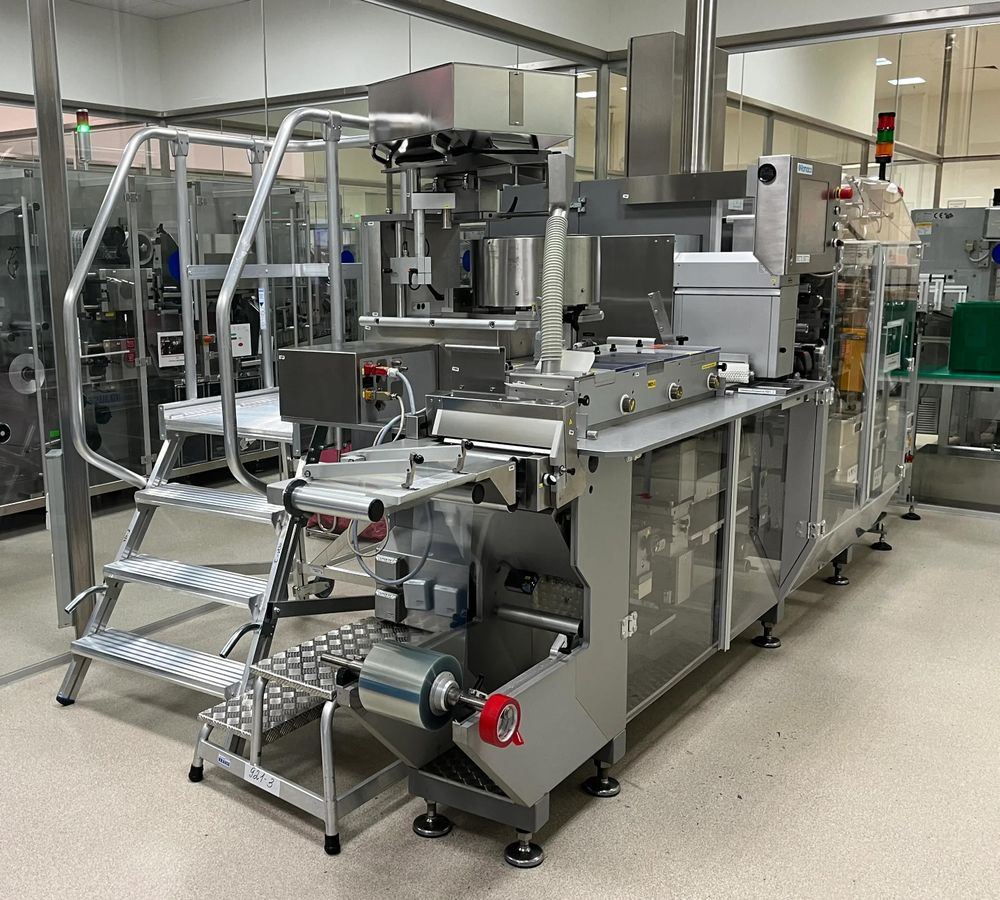

1) BLISTER PACKING MACHINE ROMACO NOACK, MODEL N921
Year of construction: 2010

Rotary sealing machine with an unbeatable ratio
of productivity to floorspace.
With the latest servo technology,
and the best tool-free changeover times in the industry.

WORKING CHARACTERISTICS
Carton output: 400/min. (max)
Forming cycles: 100/min. (max)
Blister output: 500/min. (max)

Compatible products: Tablets, capsules, soft gels,
caplets, child-resistant/senior-friendly packs,
coldform aluminum, multi-layer lidding materials
Foil width: 210 mm (max)
Forming depth: 12 mm (max)

Reel diameter forming foil: 700 mm (max)
Reel diameter lidding foil: 280 mm (max)
Carton size (A/B/C): 120/95/210 mm (max)

2) UHLMANN CARTONER, MODEL C150
Year of construction: 2010
This cartoner works with the same consistent precision
for big industrial production as well as in smaller,
less equipped factories.
with GMP-compatible pharmaceutical design
error-free production, even when working with various carton qualities
easy operation even with semi-skilled personnel

Output: up to 150 cartons per minute
Compatible products: bottles, ampoules, vials, wallets, pens for powder, pens for liquids, pens for tablets, inhalers, pouches, syringes and medical devices

3) PESTER PEWO PACK WRAPPER, MODEL PEWO PACK 250
Stretch wrapper for folding cartons and other similar packaging formats.

MACHINE CHARACTERISTICS
90 degree infeed conveyor
Total conveyor length: approx. 2000 mm

PRODUCTION CHARACTERISTICS
Capacity: up to 30 collations/bundles per minute
Foil width: from 50 to 250 mm
Foil thickness: from 0.025 to 0.1 mm
Reel diameter of the foil: 300 mm (max)
Format range cartons: min. 30 x 15 x 60 mm; max. 150 x 90 x 180 mm
Format range collation/bundle: min. 60 x 30 x 60 mm; max. 400 x 180 x 250 mm

4) CHRIST WRAPPING MACHINE, MODEL CT2000
Fully automatic collection table for intermediate storage of products.

MACHINE CHARACTERISTICS
Ergonomic design with plenty of foot and knee room for the operator
Compact, high-quality balcony construction
Stainless steel cladding, easy to clean
Fast, tool-free format changeover
