Royal Master Gen 5 (TG12x3) CNC Guidewire Centerless Grinder

CNC Control
Strongarm 15.1 Mini-Station NT Based Touch Screen Windows Control
Grinding Wire Diameter .0001" to .250"
Diameter Capabilities .0015" to .750"
Grinding Feed Rate In Guide Wire Mode 1.0" per second (25mm/second)
Linear Slide Resolution 6349.9 Linear Counts per Inch
Linear Accuracies +/- .0005"
Diameter Resolution .000004"
Diameter Accuracies .00004"
Usable Wheel Width 1.5"
Grinding Wheel Diameter 12"
Inverter for Speeds up to 9,000 SFPM
Machine Weight 2300 lbs
TG-12x3 Hi-Accuracy System
Servo Motors
Ball Screw .00001" Ram Positioning
Glass Scale Feedback .000004"
Linear Actuator with Sony Magnetic Encoder
Levin Spindle System with 1C Collets
Windows NT Pentium Grade Computer with 15" Flat Screen Monitor
Touch Screen
2 - 7” Air Sensing Hydraulic Dressers Over Wheels
Extra Dresser
Servo Driven Over the Wheel Dressers
Servo Driven Infeed
Deep Bed Filter Industrial Filters Co. Coolant System with Paper Filtration
Bijur Auto Lubrication System

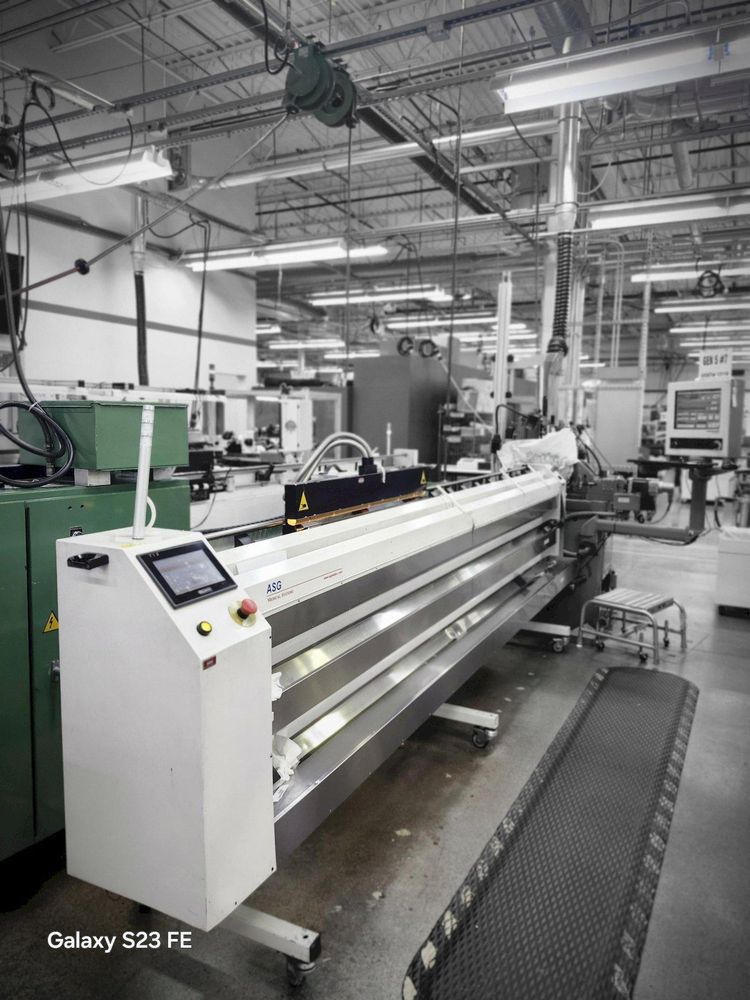

Accu-Feed AGF 5M-V Fully Automated Wire Loader/Unloader
IBAR Sensor for Wire Detection
Spindle Load Meter
