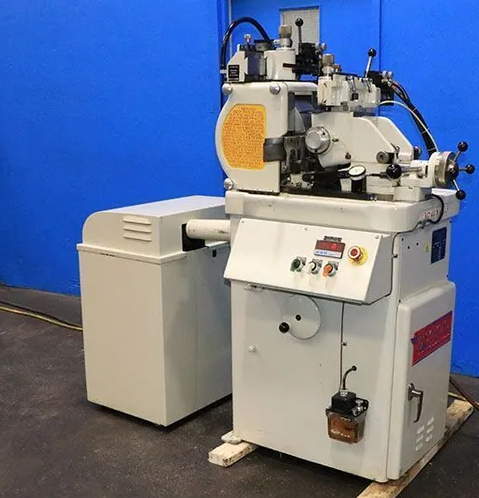

Royal Master TG12X4

ROYAL MASTER TG12X4
Year: 2004

CAPACITY:
INFEED AND THRUFEED ............. 0.004" TO 1.5" DIA.
LENGTH .......................... 12' ON 0.5" DIA.

WHEELS:
MAXIMUM GRINDING WHEEL .......... 12" DIA. x 4.5" WIDE
MINIMUM GRINDING WHEEL .......... 10" DIA. x 1/4" WIDE
MAXIMUM REGULATING WHEEL ........ 6" DIA. x 4.5" WIDE
MINIMUM REGULATING WHEEL ........ 1/4" WIDE W/SPOOL

SPINDLE SPEEDS:
GRINDING WHEEL .............. CONSTANT SPEED 2,040 RPM
REGULATING WHEEL ............ INF. VARIABLE 20 TO 500 RPM

REGULATING WHEELHEAD:
MAX. ANGLE OF TILT FOR
THRUFEED GRINDING ............. 6 DEGREES
MAX. SWIVEL FOR TAPER GRINDING .. 5 DEGREES

APPROXIMATE FLOOR SPACE ......... 54"L-R x 30"F-B x 66"H
APPROXIMATE WEIGHT .............. 2,300 LBS

"PRECISION" REGULATING WHEEL BEARINGS
HYDRAULIC DRESSER FOR GRINDING WHEEL
HYDRAULIC DRESSER FOR REGULATING WHEEL
VARIABLE SPEED DRIVE FOR THE REGULATING WHEEL
TACHOMETER, DISPLAY UNIT, FOR THE REGULATING WHEEL
WORK REST & BLADE
AUTOMATIC LUBRICATION SYSTEM
SELF CONTAINED HYDRAULIC SYSTEM
ROYAL MASTER COOLANT TANK, WITH PUMP
7.5 H.P. MAIN DRIVE MOTOR
3/60/208-230-460 VOLT ELECTRICS
MACHINE IS PRESENTLY WIRED FOR 3/60/208 VOLTS
