RPA9

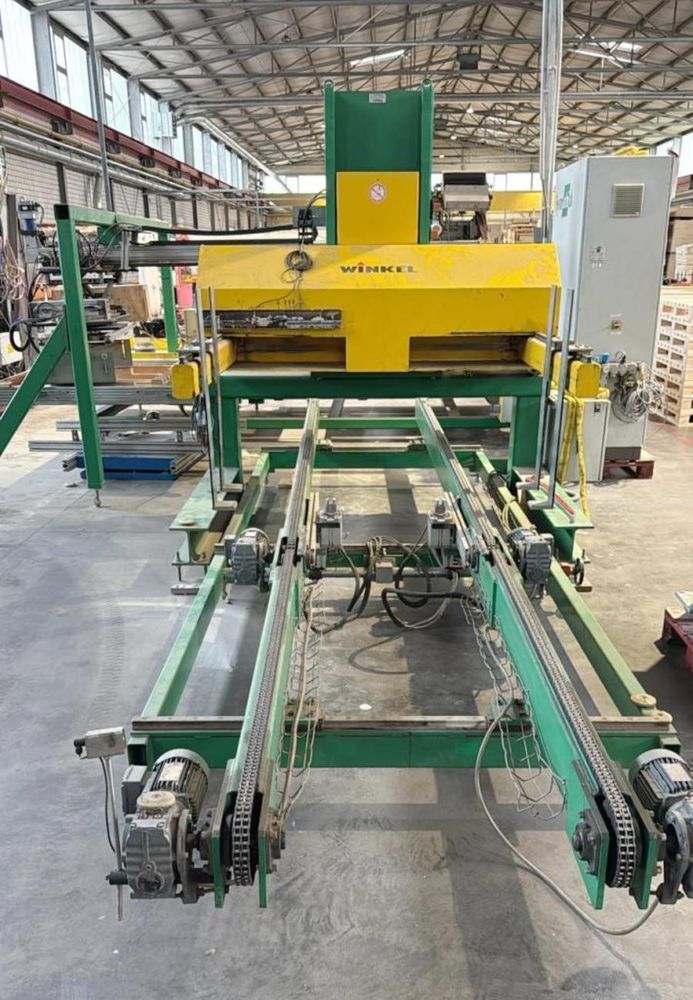

CNC machine for pallet production Sysmathick RPA9 + stacker
Used machine already dismantled
Machine for assembling wooden parts with top and bottom nailing
The RPA9 is a machine with circulation chains for the production of pallets in standard dimensions according to four templates (maximum 1600 x 1400 mm LW)

Operation via a touchscreen
Format changeover within a few minutes

Two programming methods:
- digital programming via PC (input of coordinates)
- Manual programming via touch screen

Storage of tens of thousands of products
Automatic control of the distance between the heads (minimum 290 mm)
Positioning accuracy +/- 1 mm
High adjustment speed (1 m/s)
Bridge with nine nailers (top 3x N58 & 3x N400, bottom 3x N80)
High nailing frequency (one row of three nails per second)
Nailing of multi-level pallets thanks to the heads Equipped with pneumatic cylinders
Pneumatic pressing of the boards during assembly

Minimum pallet dimensions 600 x 300 mm LW
Maximum pallet dimensions 1600 x 1400 mm LW
Maximum template dimensions 1700 x 1600 mm LW
Maximum nailing capacity 1600 x 1400 mm LW
Maximum pallet height 190 mm
Minimum pallet height 110 mm
Machine capacity 60 - 200 pallets/hour
