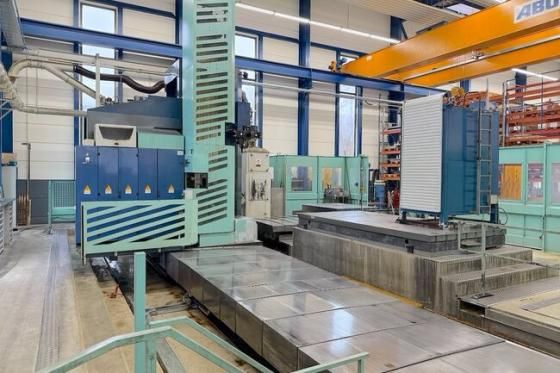

Rambaudi, Sachmann MP-212 HS 2000 rpm

X-axis travel: 6000 mm
Y-axis travel: 2000 mm
Z-axis travel: 1400 mm
V-axis travel: 1500 mm
Rotary table speed: 3 rpm
Rotary table size: 2000 x 1600 mm
Rotary table load: 15000 kg
Control: Heidenhain iTNC 530
Spindle motor power: 37 kW
Spindle speed: 2000 rpm
Spindle taper: ISO 50
Ram size: 500 x 500 mm
Ram motor power: 56 kW
Feed rate X-axis: 30000 mm/min
Feed rate Y-axis: 30000 mm/min
Feed rate Z-axis: 30000 mm/min
Table length: 4000 mm
Table width: 2000 mm
Table load: 25000 kg
Machine length: 15000 mm
Machine width: 8000 mm
Machine height: 6000 mm
Machine weight: 85000 kg

Features / Equipment:
KOSMO 3 indexing head
Indexing accuracy 0.02 degrees
Indexing head torque 1195 Nm
Spindle extension length 600 mm
3D measuring probe MP60
Automatic tool changer chain 80 positions
Coolant system 1320 L
Coolant pressure 4.8 bar
Heidenhain RON 700 encoder for table rotation
Automatic indexing milling head
Chip conveyor
