Sagitta 76 Laminator

ECHNICAL PARAMETERS :
Min size: 300 x 220 mm
Max size: 760 x 1120 mm
Max paper stack height: 68 cm
Basic weight: 115-600 g/m2
Operating speed: up to 50 m/min
Max recommended operating temperature: 135°C
Laminated cylinder heating time (25-100°C) approx. 5 min
Overlap accuracy (at constant speed) +/- 1 mm
Max clamping force: 49.8 kN
Max linear pressure: 65 N/mm
Film data:
Film type: OPP, PET, Nylon
Film thickness: 22 – 50 microns
Electrical parameters:
Power supply: 16.5 kVA, 3 x NPE 400V AC 50 Hz
Air supply: min. 6 bar, 100 l/min output

Standard equipment includes:
Komfi feed head
Automatic application – pallet feeding
Automatic overlap control system
Laminating cylinder heated by a 5-zone jacket heater system
PUR pressure cylinder
Pneumatic film application sleeve
Automatic sheet separation using a built-in perforator and rotary knife
Pneumatic sheet separation system
High-stack pallet delivery

Additional equipment:
OTF film module
Film roll lifter

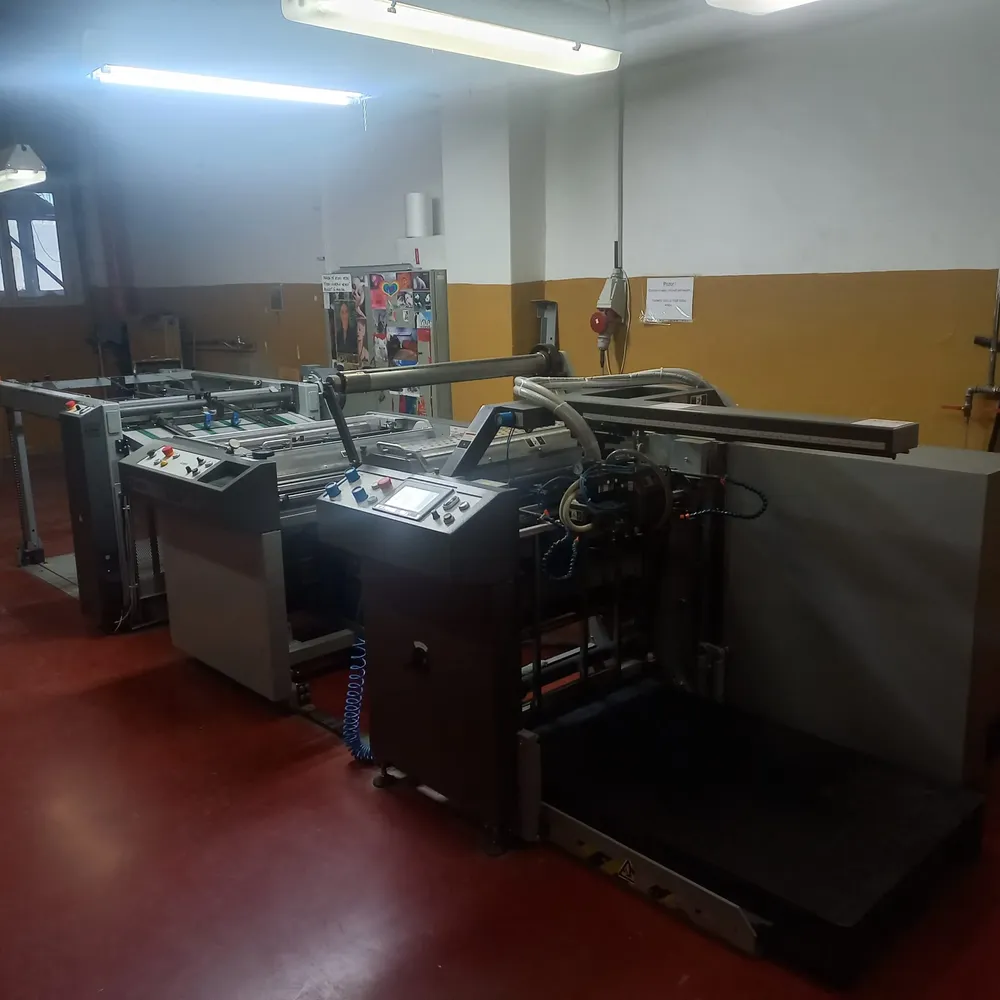

This industrial automatic laminator is designed for laminating medium and large runs up to B1 format.
This robust and reliable machine is suitable for both printing houses and laminating services.
The laminator is designed for non-stop operation and allows for single-sided or double-sided hot lamination.
Standard equipment includes automatic stack feeding, a laminating module, an automatic sheet separator equipped
with a rotary knife, and a sheet stacker.
Temperature, pressure, and speed control allow lamination of various paper formats and weights, up to 600 g/m².
The chrome-plated laminating roller is electrically heated by sectional heaters divided into 5 heating zones,
while the pressure roller is made of polyurethane and pressed against the heating roller using pneumatic actuators.
Laminated sheets are stacked high.
