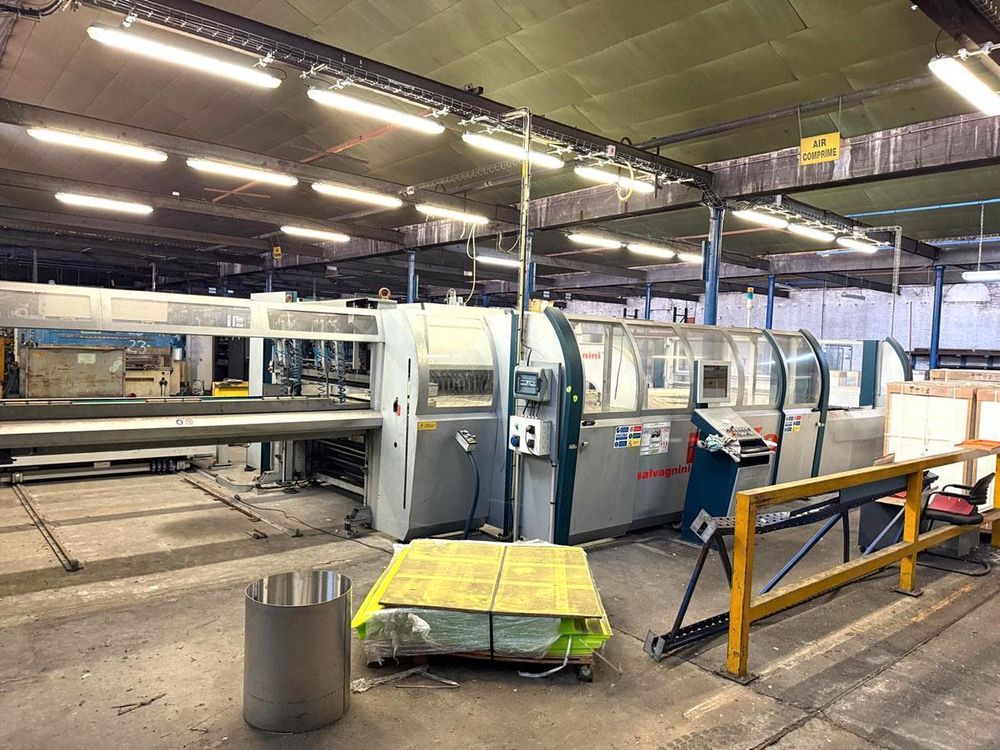

Salvagnini P4Xe - 2116 Panel Bender

Salvagnini P4Xe - 2116 Panel Bender

Max bending length 2180 mm
Min sheet length 285 mm
Max sheet length 2495 mm
Min sheet width 190 mm
Max sheet width 1524 mm
Max diagonal 2500 mm
Max workpiece height 165 mm
Power 9 kW

Steel min thickness 0.5 mm
Steel max thickness 2.5 mm at 90° (max 1950 mm)
Steel max thickness 2.1 mm at 130° (max 1950 mm)
Steel max thickness 2.1 mm at 90° (+1950 mm)
Steel max thickness 1.6 mm at 130° (+1950 mm)

Stainless steel min thickness 0.5 mm
Stainless steel max thickness 2.1 mm at 90° (max 1950 mm)
Stainless steel max thickness 1.6 mm at 130° (max 1950 mm)
Stainless steel max thickness 1.6 mm at 90° (+1950 mm)
Stainless steel max thickness 1.2 mm at 130° (+1950 mm)

Aluminum min thickness 0.5 mm
Aluminum max thickness 3.2 mm at 90° (max 1950 mm)
Aluminum max thickness 2.5 mm at 130° (max 1950 mm)
Aluminum max thickness 2.5 mm at 90° (+1950 mm)
Aluminum max thickness 2.1 mm at 130° (+1950 mm)

Automatic loading table
Panel bender P4Xe-2116
Upper bending tool LS1
Lower bending tool LI
Drop holder with automatic length adjustment ABA
Additional left-hand clamp with sheet thickness measurement ZLC
Right-hand intermediate table with conveyor ZLC
Left-hand intermediate table with RBU ZTL/RBU1
Table surface with brushes SPA
Standard presser NS
Tool holder for pre-bending tools CLA
Tool holder for optional P tools P
Cleaning and greasing device for bending tools PSE
Removal device SAP
