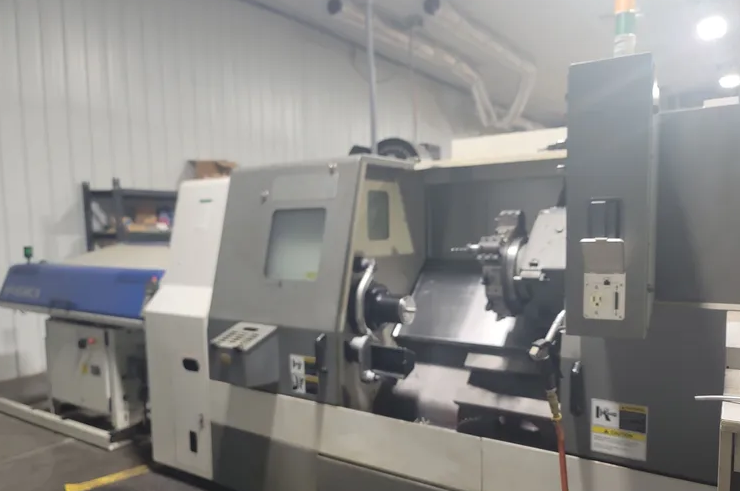

Samsung Fanuc OiTD CNC 2,500 rpm SL-30C/1000 CNC Turning Center 2 Axis

X axis travel: 9.06"
Z axis travel: 43.30"
Rapid traverse (X / Z): 709 ipm / 945 ipm
Control: Fanuc OiTD CNC
Bar capacity: 3.5"
Swing over bed: 25.59"
Swing over cross slide: 18.90"
Maximum turning diameter: 15.75"
Maximum turning length: 41.34"
Chuck size: 12"
Spindle nose: A2-8 (ASA)
Main spindle motor: 30 / 25 hp
Spindle speed: 2,500 rpm
Bore diameter: 4.13"
Draw tube ID: 3.58"
Spindle torque (30 minute rating): 628.54 ft.-lbs.
Spindle drive method: Belt
Number of tool stations: 12
Turret index speed (1 station): 0.25 sec
Curvic coupling: 2 piece hydraulic clamp and index
Curvic coupling diameter / clamp force: 8.27" / 6,404 lbs.
Tool size (turning and facing): 1" – Wedge clamp type
Tool size (boring bar max diameter): 2"
Turret index repeatability: +0.00012"
Tailstock center taper: MT #4
Tailstock quill diameter: 4.33"
Tailstock quill travel: 3.94"
Maximum thrust of quill: 1,586 lbs.
Coolant pump motor: 1.2 hp (65 psi)
Coolant tank capacity: 67.63 gal.
Coolant system type: Removable / Independent
10" Chuck
12" Chuck
S30 Collet Chuck
Tool Presetter
Programmable Tailstock
Parts Catcher
Chip Conveyor
Bucci Barfeed
