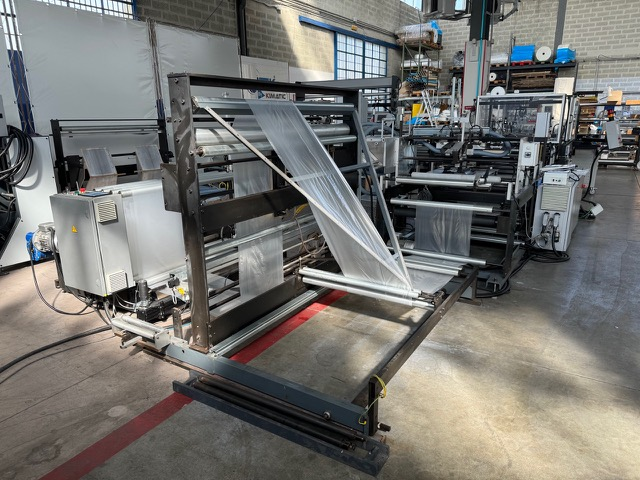

Scae Dimatic SILVER 101 width 880 mm Plastic Bag Machine

Bag dimensions:

Length (printing area):
- Min. 80 mm
- Max. 800 mm

Width (bag height):
- Min. 200 mm
- Max. 800 mm

The machine is equipped with:
- Unwinder with drive, max. roll width 1600 mm (pneumatic dancing roller,
edge guide, 3" expanding roller)
- Unwinder with drive for document pocket (pneumatic dancing roller,
3" expanding roller, hydraulic reel lifting)
- Hot air sealing units
- 1600/800 mm folding triangle
- Bottom flap max. 80 mm
- Double unwinder for 2 liners (tapes with silicone spacer)
- 2 sections for punching half-moon shapes, synchronised with printing
- for the production of Biohazard/Specimen bags
- feeding section, dancing roller and first auxiliary servo motor for film advancement
- 2 frames for perforating ventilation holes equipped with
2 sections (4 in total) with 8 mm diameter punches
- Pneumatic security seal around the incision for easy bag opening
- Pneumatic punching of a hole for easy bag opening
- Trims collection
- Welding electrode with a radius of 1 and a silicone roller with servo drive
- Automatic collection table
- Chiller for cooling the electrode
