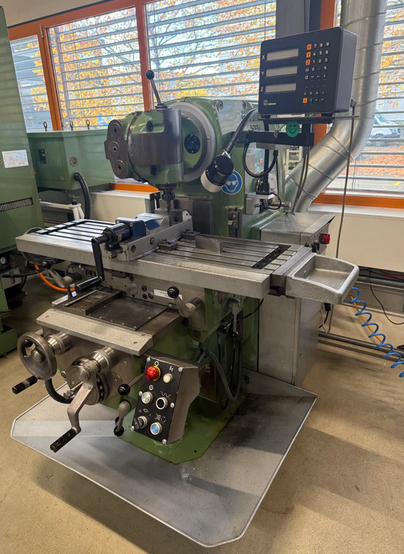

Schaublin 53 N 1,510 RPM
Ref :
2767804-3-MT
Condition :
Used
Manufacturer :
Schaublin
Model :
53 N
Spindle Speed :
1,510 RPM
Year(s) :
-
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Table Length 1100 mm
Table Width 305 mm
X Axis Travel 700 mm
Y Axis Travel 250 mm
Z Axis Travel 490 mm
Spindle ISO40
Spindle Speeds 18 steps up to 1,510 RPM
Feeds Longitudinal 12–105 mm/min
Feeds Transversal 12–105 mm/min
Feeds Vertical 6–525 mm/min
Rapid Traverse Longitudinal 3.5 m/min
Rapid Traverse Transversal 3.5 m/min
Rapid Traverse Vertical 1.7 m/min
Voltage 3×380 V 50 Hz
Motor Power 5.1 kW
Machine Weight 2,100 kg
Overall Dimensions 2250×1920×1720 mm
Vice
3-Axis Digital Readout
Universal Milling Head
Set of Collets
Set of Toolholders
Drill Chuck
Tool Cabinet
Lamp
Set of Clamping Tools
