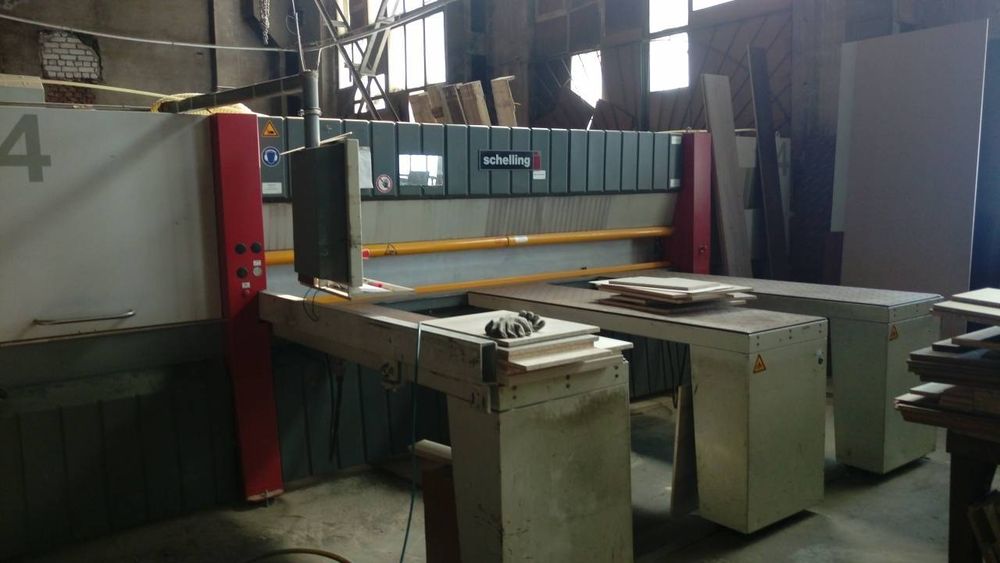

Schelling F4

Technical data:
Weight of the disk to the table: 95 mm
Clamp in the open support: 90 mm
Max. High speed: 80 mm
Max. Size of tiles: 3300 x 3300 mm
Diameter of the drive disk: 350 mm
Diameter of the front disk: 200 mm
Power of the motor of the new blade: 15 кВт
Power of the motor of the smaller blade: 1.5 кВт
Speed ​​of the drive unit: up to 150 m/min before and after
Speed ​​system delivery: up to 80 m/min before and after
Productivity per hour (depending on cutting patterns): approx. up to 1.5 m3/hour

Features of Schelling cutting centers:
Flat guides with a hardened steel strip for the saw unit and feed system with a 10-year warranty
Scissor clamp with progressive pressure increase
Heavy-duty, wear-resistant steel work table
Infinitely variable saw blade adjustment via motor and lever (the absence of vertical guides prevents wear)
Rack-and-pinion feed of the saw unit
Heavy-duty ground angle stops for absolute precision
Control – "Hardware" based on WINDOWS NT and Siemens S7 PLC
Diagnostic system with text and video inserts
Online maintenance (PC Anywhere) for a computer, as well as PLC via telephone modem

Technical requirements:
Power consumption: approx. 20 kW/h
Air consumption: approx. 1000 l/min at 1 bar (6 bar pressure in the air line)
Exhaust: approx. 2200 m³/h at a minimum air speed of 32 m/s
Reduced aspiration pressure: approx. 2000 Pascal on the saw
