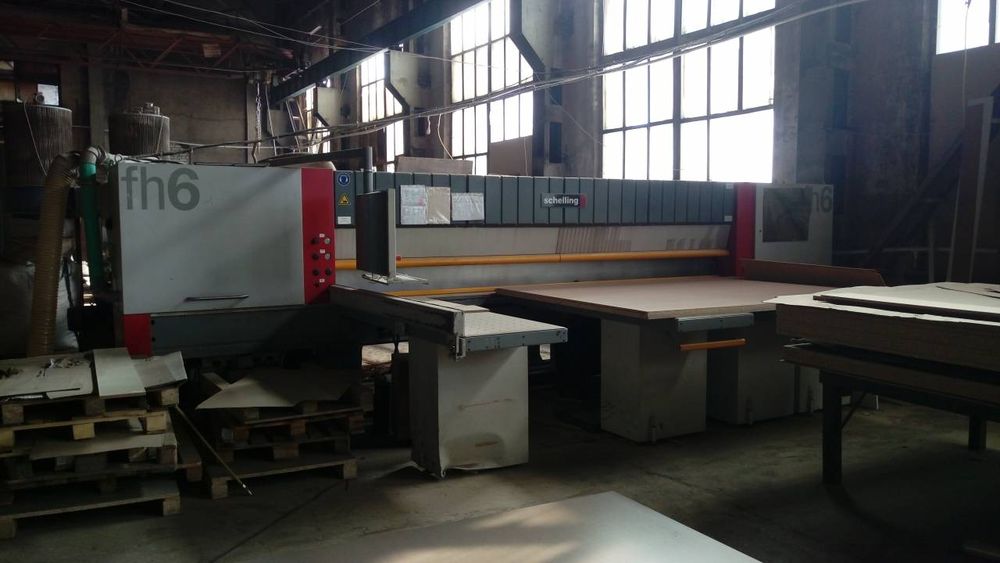

Schelling F6

Features of cutting centers from Schelling:
Flat guides with a hardened steel strip for the saw unit and feed system with a 10-year warranty
Scissor clamp with progressive pressure increase
Solid and durable steel workbench
Stepless adjustment of the saw blade using a motor and lever (the absence of vertical guides prevents wear of parts)
Feeding the saw unit using a toothed rack
Solid ground angle stops for absolute precision  Control – “Hardware” based on WINDOWS NT and PLC Siemens S7
Diagnostic system with text and video inserts
Online technical support (PC Anywhere) for your computer, as well as SPS via telephone modem

Technical requirements:
Energy consumption: approx. 40 kW/h
Air consumption: approx. 1600 l/min at 1 bar (6 bar pressure in the air duct)
Aspiration:pr. 3970 m³/h at min. 32 m/s air speed
Reduced aspiration pressure: pr. 2000 Pascal on saw

Limit values:
Plate thickness: 6 - 60 mm (less than 6 mm – optional)
Thickness tolerance of slabs: +/- 0.2 mm for coated slabs
Wave height of slabs: max. 20 mm

Height of saw blade above table: 135 mm
Clamp open: 125 mm
Max. cutting height: 120 mm
Max. plate size: 4300 x 4300 mm
Saw blade diameter: 460 mm
Cutting disc diameter: 200 mm
Main saw motor power: 27 kW
Scoring saw motor power: 1.5 kW
Saw unit speed: up to 150 m/min forward and backward
Feed system speed: up to 80 m/min forward and reverse
Productivity per hour (depending on cutting patterns): approx. up to 3 m3/hour
