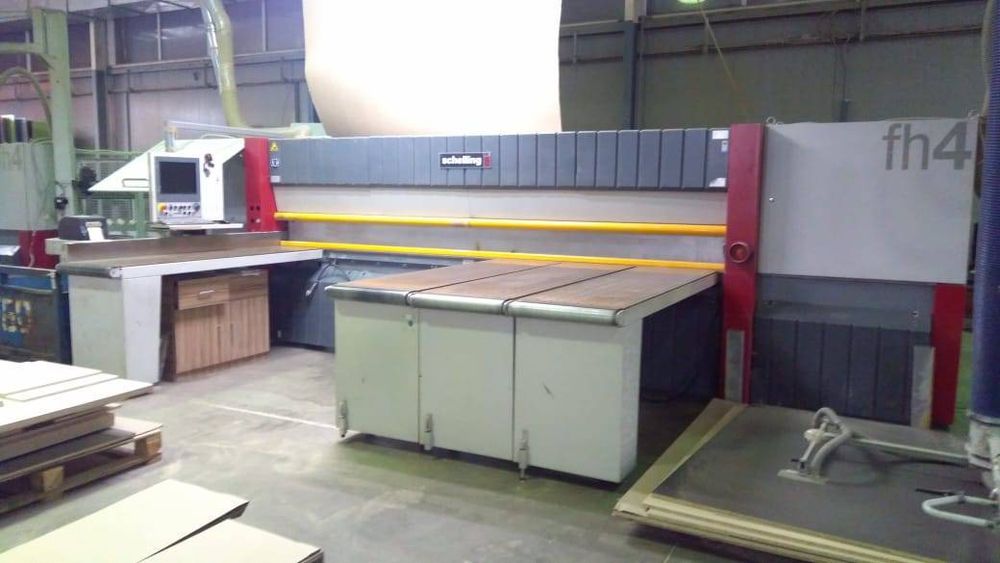

Schelling FH4 430/330

Plate thickness: min. 6 mm
Wave height of slabs: max. 20 mm
Plate thickness tolerance: +/- 0.20 mm for coated boards
Roller table with polyamide casters
Angle stop in front of the saw, 1450 mm
Double-groove feed guides, length 5280 mm
Feed carriage with 9 clamps. Pos.: 65 mm, 165 mm, 265 mm, 440 mm, 740 mm, 1040 mm, 1940 mm, 2840 mm, 3740 mm.
Strip levelers on the pressure beam, 40 – 2200 mm (material alignment < 3 mm cannot be guaranteed)
Saw unit FH4 Evolution 430 / 15 kW / 50 Hz, scoring saw 1.5 kW, pressure beam, protective curtain,
1 set of saw blades
Angle stop after saw, 2200 mm
Clamping beam with recesses for clamps.
Centralized lubrication system for guides.
Duplicate hard drive.
Online diagnostics.
Program for printing labels for parts and remnants.
ETISYS EP-724 Label Printer
Printer stand with angle stop.
Climate control system in the distribution cabinet.
1 stationary table with air cushion 2100 x 600 mm
2 sliding tables with air cushion 2100 x 600 mm
1 additional sliding table with air cushion 2100 x 600 mm
MCS - F basic management based on Windows XP, in Russian, incl.:
- 17" monitor (color)
- keyboard and mouse
- standard PC including floppy disk and CD-ROM drive
Distribution cabinet including cable connection for the entire machine


Technical requirements:
Energy consumption:
approx. 20 kW/h
Air consumption: approx. 1000 l/min at 1 bar (6 bar air line pressure)
Aspiration: approx. 2200 m³/h at min. air speed 25 m/s
Reduced aspiration pressure approx. 2500 Pa on the saw
Trumpet:
Pressure beam - 1 x ø 120 mm
Sawdust collection channel for the pressure beam – 1 x ø 100 mm
Sawdust collection at the cutting line table level - 1 x ø 80 mm
