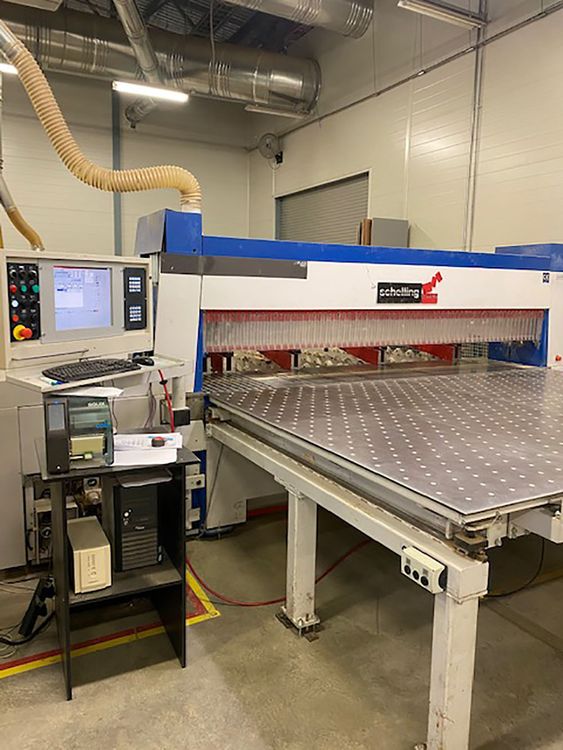

Schelling FLM 330/220

Technical specifications:
Max. feed speed m/min 130
Stepless feed
Minimum thickness of slabs, mm 10
Saw blade projection, mm 110
Sawing stack height, mm 100
saw blade diameter mm 410
Main motor kW 21
cutter
NRO optimization
Lifting table at the rear, size, mm 3100 x 2200
Rotary roller table at the front, mm 3100 x 2200
For sensitive workpieces, adjustable clamping pressure
Right support
Total connection 25 kW

Standard machine functions:
Entering a cutting map with graphical display
Animated display of the production process
Text-based diagnostics with online help
Display of set and actual values
Automatic cropping
Cutting program for internal material stress
Automatic stepless adjustment of cutting length and plate size
Automatic stepless adjustment of cutting length and stack height
Short stroke of the pressure beam
Electronic pressure regulator of the clamping beam
Third cut function
Mechanical feeler gauge
Indication of engine power. Lowering of the saw blade when overloaded.
When aligning the material, automatically adjust the aligning position of the material width
Stepless adjustment of feed speed and acceleration.
