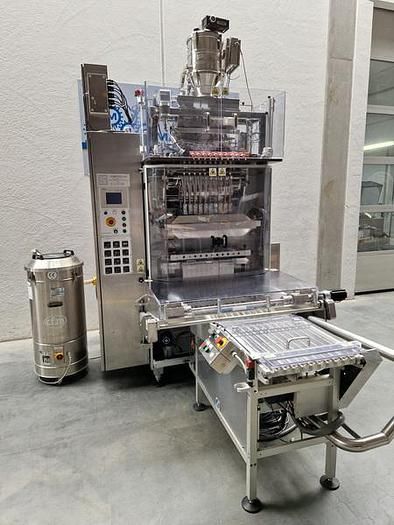

Schmucker Tube-S 10 L

Stickpack powder filler
• 10 rows for thermal foils, maximum temperature 220°C
• Intermittent operation
• Maximum output 45-50 cycles/min (450-500 sticks/min)
• Volume dosing (10 dosing guides) for mini tablets/granulates/free-flowing powder 250-1500 mg/bag
• Adjustable bag length 50-155 mm
• Bag widths depending on the format set, with the format set for bag width 46 mm, final bag width 18 mm
• Product suction via Piab vacuum conveyor
• 10 Schmucker PL 1B MB hot foil printing units, single-line, 17 types
• Cutting knife for tear notch
• Horizontal knife
• Haug ionization unit for feeding the ionized product
• Powder suction
• 10-row discharge conveyor, e.g., for connection to a 10-row 100% checkweigher (see our item number) 10-0219)
• Side conveyor belt for defective bags
• Transport trolley for film reels
• Siemens S7-300 PLC
• 380V/50Hz power connection
