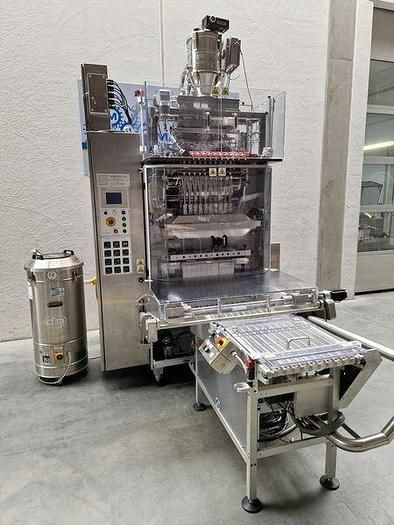

Schmucker Tube-S 10 L

10 rows for thermal sheets, maximum temperature 220oC
Intermittent operation
Max. performance of 45-50 cycles/min (450-500 sticks/min)
- Volume dosing (10 dosing guides) for mini pills/grab/free flow dust 250 -1500 mg/bag
Adjustable bag length 50-155 mm
Bag anchored according to the formatting game, with the format set for bag width 46 mm, width of the final bag 18 mm
Aspiration of the product by vacuum conveyor Piab
10 Hot Printing Units Schmucker PL 1B MB, one line, 17 types
Cut knife for breakaway notch
Horizontal knife
Haug ionisation unit for feeding the ionization product
- Aspiration of dust
10 row output tape, for example, for connection to a 100% weight controller (see our article 10-0219)
Side conveyor belt for defected bags
Transport for foil coil transport
PLC Siemens S7-300
Connect the. 380V/50Hz
