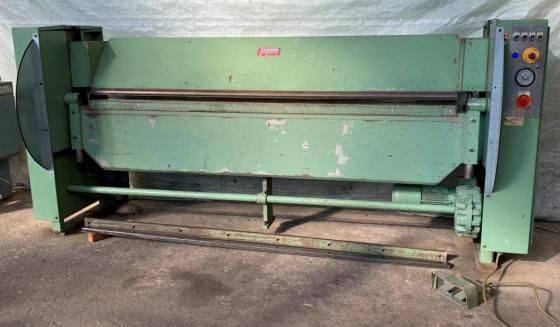

Schroder MAK II/III 2520mm

SCHRODER MAK II/III
Newin: 1981

Maximum working width: 2520mm
for metal sheets up to: 2.5 mm
opening width top clamping bar: approx. 250 mm
adjustment bending cheek: 30 mm
bending angle adjustment:
clamping bar drive: 1.5 kW
below cheek drive: 2.3 kW
rear stop:
electrical connection: 380 V kW
weight: 2300 kg
space needed: 3300 x 1400 x 1430 mm

addition
used swivel bending machine with electron.
Bending beam and height adjustment of the upper beam

Accessories
electr. Device in the control cabinet on the side. mounted
on the machine stand, electr. Foot switch, 2 30° bending rails
2 bending cheek rails 10 and 22 mm, electr. Circuit diagram
operating instructions
