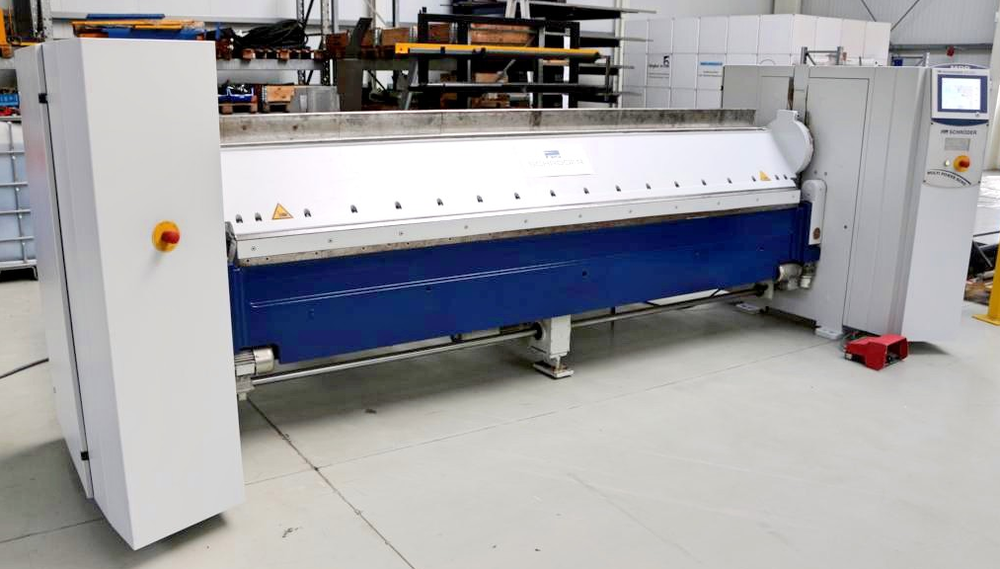

Schroeder MPB 3200/2.0

Sheet Width: 3220 mm
Max Plate Thickness (Steel): 2.0 mm
Max Plate Thickness (Stainless Steel): 1.0 mm
Upper Clamping Bar Adjustment: 160 mm
Upper Clamping Bar Speed: 100 mm/sec
Folding Beam Adjustment: 80 mm
Bending Speed: approx. 120°/sec
Backgauge Range: approx. 10 - 2000 mm
Backgauge Speed: 300 mm/sec
Compressed Air Requirement: 6 bar
Max Working Height: 869 mm
Control: POS 2000
Total Power Requirement: 10.4 kW
Voltage: 400 V
Machine Weight: 3750 kg
CNC Electro-Motor Driven Folding Machine
Rotating Upper Beam
Automatic Tool Change System
2 Tool Stations
Servo-Driven Drives for Bending Beam
Servo-Driven Drives for Upper Beam
Electric Backgauge
CNC Electric Lower Beam Adjustment
Rear Sheet Support Surface
Double Foot Switch
30° Upper Tool Sharpening Rail
Split Upper Tool Goat’s Foot Rails H=130 mm
10 mm Bending Rail
25 mm Bending Rail
