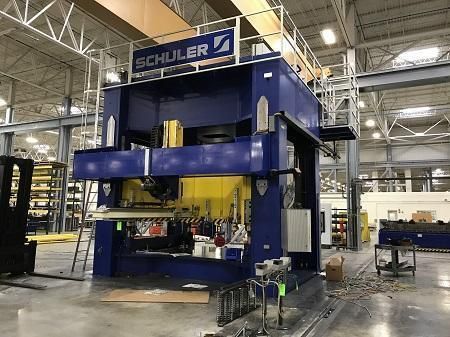

Schuler BH-630-3.8x2.3 6300 kN

Press force: 6300 kN
Press force: 708 short tons
Press force: 632 long tons

Die space: 51.18″
Closing speed: 11.81″/s
Maximum working speed: 0.945″/s
Working speed at nominal force: 1.85″/s
Maximum die area: 145.67″ × 86.61″
Minimum die area at nominal force: 74.80″ × 45.27″
Minimum die height: 19.68″
Maximum die total weight: 17 tons
Maximum upper die part weight: 17,636 lbs

Admissible off-center load left-right: 500 kNm
Admissible off-center load front-back: 250 kNm

Installed load: 260 kW
Installed power: 348 HP
Nominal current: 310 A
Voltage: 480 V
Frequency: 60 Hz

Hydraulic working pressure: 277 bar
Total oil charge: 2500 liters
Oil type: HLP 46 DIN 51524

Machine weight: 124 tons
