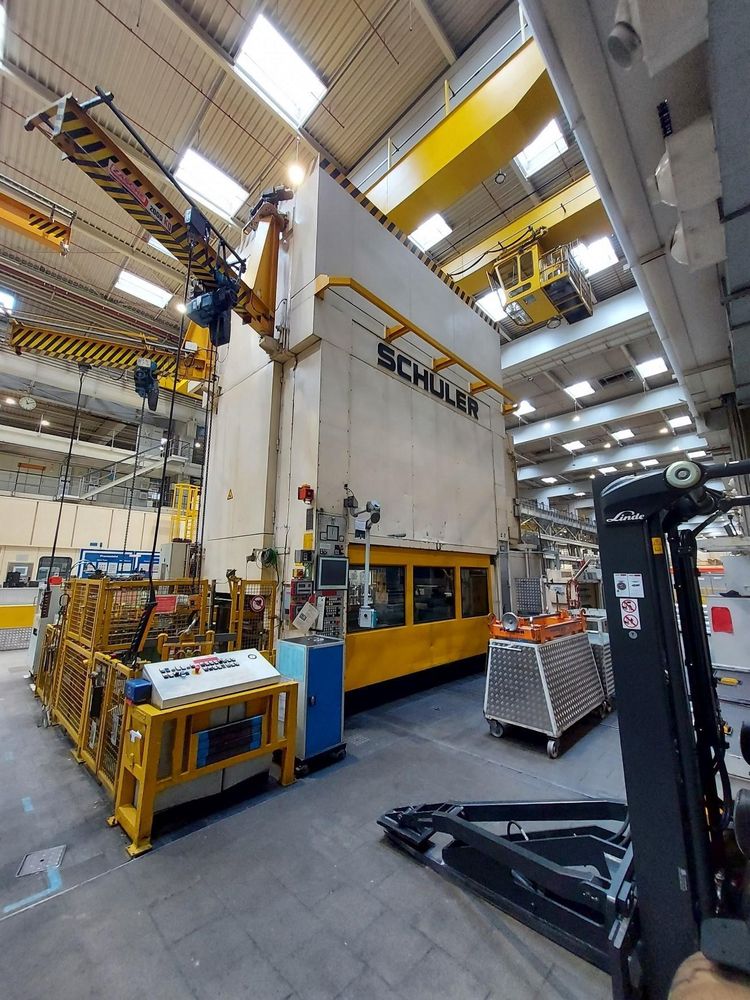

Schuler T2-800 800 tons at 12.5 mm
Ref :
2737536-3-AW
Condition :
Used
Manufacturer :
Schuler
Model :
T2-800
Pressure :
800 tons at 12.5 mm
Year(s) :
1981
Quantity :
1
Location :
Seller or machines location:
AMERICA North (USA-Canada-Mexico)
AMERICA North (USA-Canada-Mexico)
Press force: 800 tons at 12.5 mm
Drive kinematics: eccentric
Number of connecting rods: 2
Slide stroke: 650 mm
Shut height from top of bolster (SDAU): 1000 mm
Slide adjustment: 100 mm
Slide dimensions (L-R × F-B): 3600 × 1500 mm
Table dimensions (L-R × F-B): 3600 × 1500 mm
Front passage: 3800 mm
Side window: 1550 mm
Max automatic speed: 30 spm
Continuous single stroke (variable): 8–25 spm
Main motor power: 75 kW
