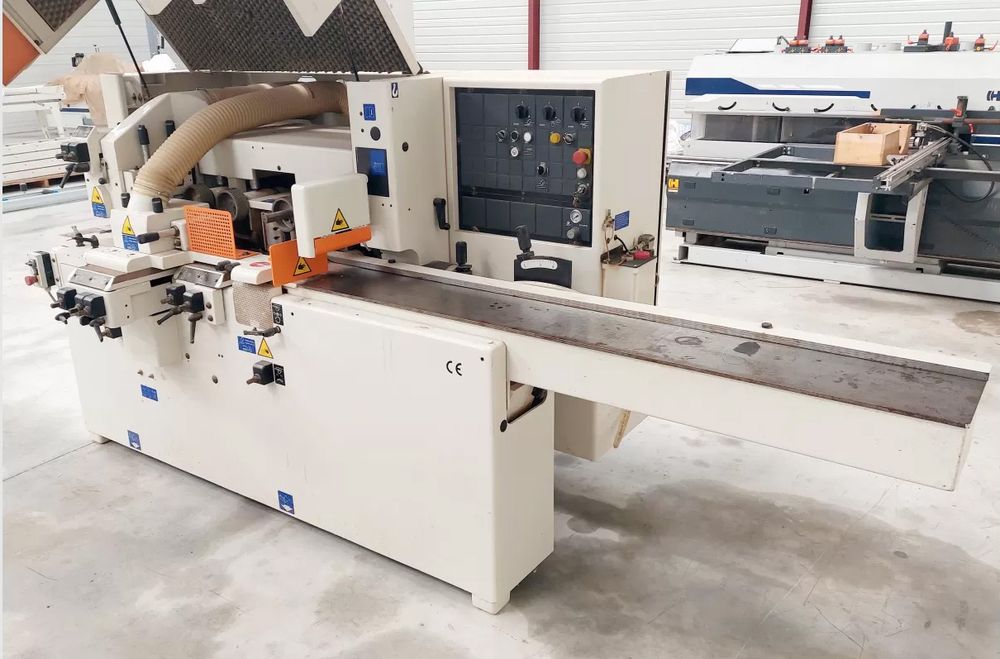

SCM COMPACT 23KS

4-SIDE CORRECTION & MOLDING MACHINE WITH 2M TABLE
WITH ELECTRIC LIFTING MECHANISM (THICKNESS ADJUSTMENT)

MACHINING CAPABILITIES:
- 4-sided planer and moulder
- Maximum finished section (thickness x width): 120 x 230 mm
- Minimum workpiece length: 300 mm
- Maximum adjustable depth of cut: 10 mm
- Spindle speed: 6000 rpm
- Feed rate: 6 or 12 m/min

PLANER COMPONENTS:
- Robust welded steel frame, table height: 900 mm
- Secure, fully panoramic, soundproof enclosure on gas springs
- Mechanical counters (Siko type) for precise manual adjustments
- Elevated control panel facing the operator
- Cast iron infeed table (L x W): 2000 x 250 mm

With depth stop and lubrication system
- Infeed side spring-loaded pusher
- Depth of cut indicators
1) Spindle 5.5 kW Jointer

Tool holder mounted Ø180mm x L250mm
2 & 3) 7.5 kW Vertical Shaft (right & left)
Tool holders mounted Ø180mm x h.140mm
4) 5.5 kW Upper Horizontal Shaft
Tool holder mounted Ø180mm x 250mm
- Adjustable pressure shoe

DRIVE:
Cardan shaft drive
- 2+2 pneumatically pressure-operated toothed steel wheels
- Outfeed wheel with rubber-coated wheels with one in the table

OTHER FEATURES:
- 400V mains power supply. Three-phase + Earth 50 Hz
- Installed power: kW (hp) IN 40 A
- Automatic star-delta start
- Motors with brakes and toothed belts
- Beam lift/lower motor for thickness adjustment: kW
- Electric lift/lower motor for the planer: kW
- Axial adjustment of vertical shafts: allows for multiple molding tool holders
- Shaft diameter Ø40 mm, acceptable tools Ø100 to 180 mm
- Minimum working pneumatic pressure (bars)
- Dust extraction: 3 x Ø120 mm & 1 x Ø150 mm
Recommended flow rate: 3338 m³/h, Minimum speed: 20 m/sec
- CE marking, Lockable disconnect switch, Emergency stop buttons
