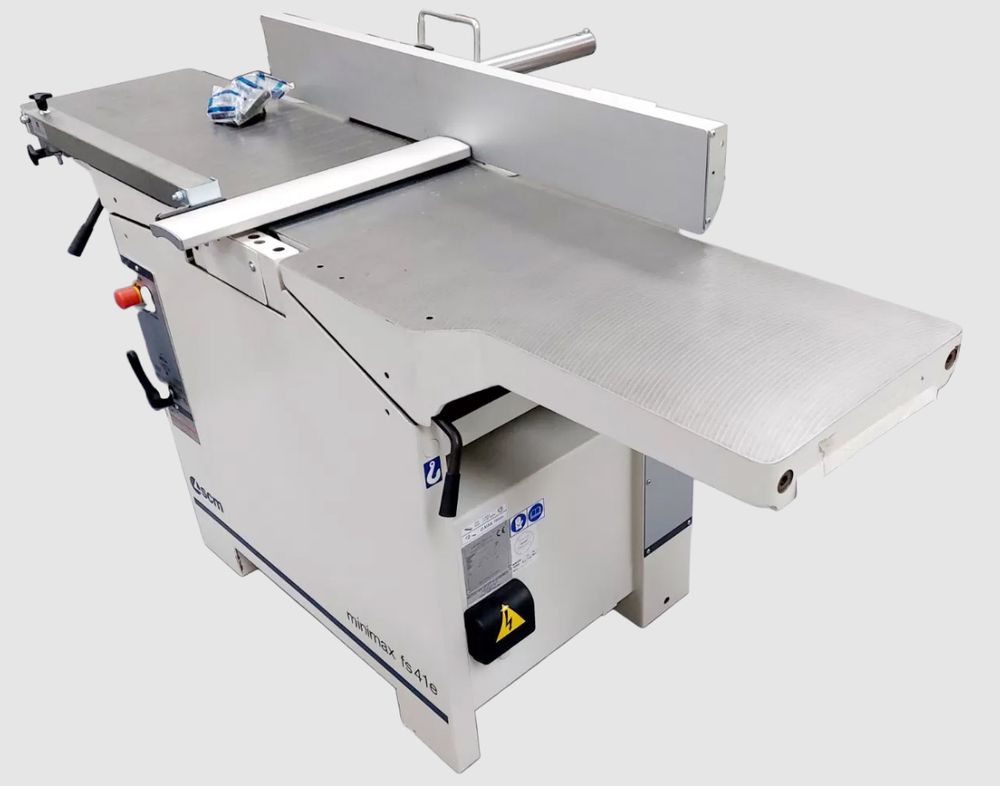

SCM MINIMAX FS41 E

Planer/Thicknesser - Like New Condition
MACHINING CAPABILITIES:
Jointer:
- Usable working width 410 mm
- Cast iron worktop, 2000 mm long
Noise-reducing lips
- Worktop height 90 cm
- "PRO" guide with double support, tiltable to all positions from 45 to 90°
(W x H) 1200 x h.165 mm
- Maximum feed size 5 mm
- Shaft speed 5300 rpm

Planer:
- Finished wood thickness 3 to 230 mm
- Minimum working length 160 mm
- Cast iron table (LxW) 423 x 775 mm
- Manual positioning and precision adjustment with digital counter (and graduated scale)
- Helical drive pressure rollers at the inlet and smooth at the outlet
- Training speeds of 6 and 12 m/min

OTHER FEATURES:
- 400V power supply. Three-phase 50Hz
- 4kW (5.5 hp) motor
- Shaft Ø87 x 410 mm, 3 knives 410 x 30 x 3 mm
- Suction inlets Ø120 mm
- CE marking, lockable disconnect switch, front/rear emergency stop buttons, motor brake
Dimensions (LxWxH): 2.00 x 1.15 x 1.10m
Weight 410 kg
